How to Install Smittybilt XRC Atlas Rock Sliders w/ Step - Textured Black on your Wrangler

Installation Time

2 hours

Extreme Terrain
Shop Parts in this Guide

INSTALLATION:

Step 1: Place the vehicle on a flat, level surface and engage the parking brake.

Step 2: Starting with the driver side, remove the side step OE nuts located on the back of the OE rocker panel, underneath the vehicle. (Fig. A)


Step 3: Remove the OE nuts located on the back of the OE side step mounts, underneath the vehicle. (Fig. B)


Step 4: Carefully remove the OE side step from the vehicle. By pulling outward to clear the studs and then down to clear the mounts. (Fig. C)


Step 5: Remove the (6 per side, 4 door) or (4 per side, 2 door) O E frame to body mounting nuts located underneath the vehicle. Save the O E hardware for reinstallation. (Fig. D)


Step 6: Carefully raise the new rock slider (93-201CA100 drvr and 93-201CA200 pass: 2 door or 93-9801 drvr and 93-9820 pass: 4 door) into place, aligned with the body mount studs, and secure it using the previously removed (6 per side, 4 door) or (4 per side, 2 door) OE frame to body mounting nuts. (Fig. E)


Step 7: Repeat steps 1 through 6 on the passenger side of the vehicle.

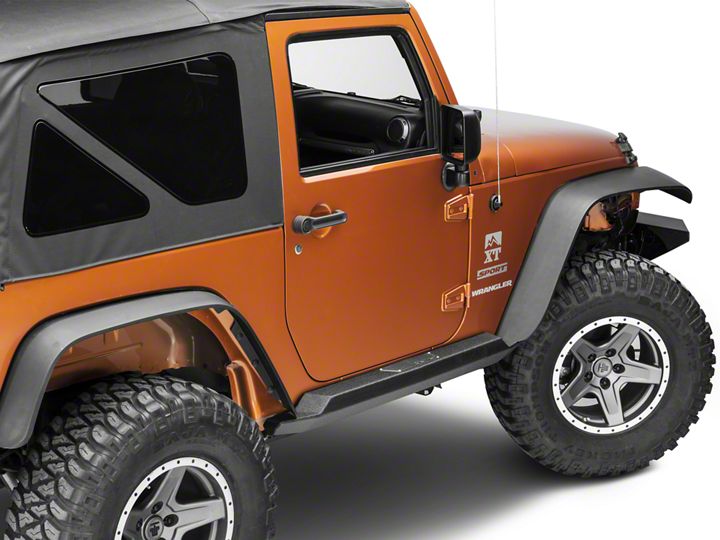

Step 8: Installation is now complete. (Fig. F)


Product cleaning and maintenance instructions
Stainless Steel Finish - Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild soap, window or glass cleaner may be used to clean the finish. Dual state powder coat finish - Mild soap, window or glass cleaner may be used to clean the finish. In order to protect the finish, you may wax your product on a regular basis with pure carnauba automotive wax. Do not use any types of soap, polish or was that contains abrasive that could damage the finish. Textured coated finishes should be cleaned with a mild soap on a damp sponge. Do not apply polish or was that requires to be removed by means of buffing. This type of wax is commonly used at car wash facilities. Chrome Finish - Mild soap, window or glass cleaner may be used to clean the finish. In order to protect the finish you should wax your product on a regular basis with pure carnauba automotive wax. Do not use any types of soap, polish or was that contains abrasive that could damage the finish.
