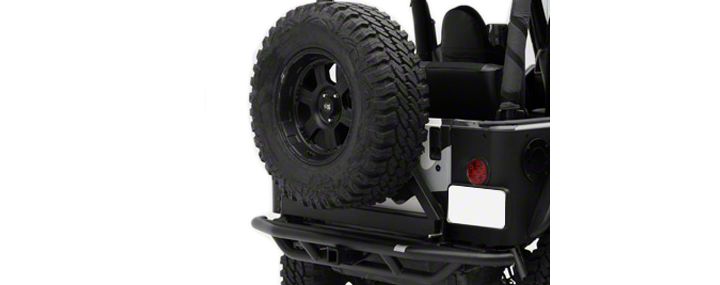

How to Install a Smittybilt Textured Black SRC Rear Bumper w/ Hitch on your 1987-2006 Wrangler YJ &

Installation Time

2 hours

Extreme Terrain
Shop Parts in this Guide

Section One


1 Remove factory rear bumper or bumperettes.


2 On all models the inner two holes will not line up with the factory holes and will need to be drilled.


3 Mount bumper on your vehicle and fasten with included bolts using only the outside holes. Make sure bumper is positioned correctly and tighten bolts snug. Use the inner bracket holes as a template; mark the holes on the frame. Now remove bumper and set to the side.


4 Caution: Use Extreme care and caution before drilling. Make sure to check backside of frame for hazards and obstructions. Using a 7/16” bit, drill the marked holes. (Figure 1)


(Figure 1) Section Two


5. Position bumper against rear vehicle frame. Attach driver and passenger side rear brackets using (1) 12 x 30mm bolt, (2) 12mm flat washers, (1) 12mm lock washer, (1) 12mm nut, at each of the eight mounting holes. Note: Do not tighten completely at this time.


6. Using (1) 12 x 30mm bolt, (1) 12 mm flat washer, (1) 12mm lock washer for each hole, mount the bottom brackets of the bumper to the bottom hole in the vehicle frame.(Tighten all hardware now)

NOTE: To protect your investment, wax this product after installing. Regular waxing is recommended. Do not use any type of polish/wax that contains abrasives that could damage the finish.
