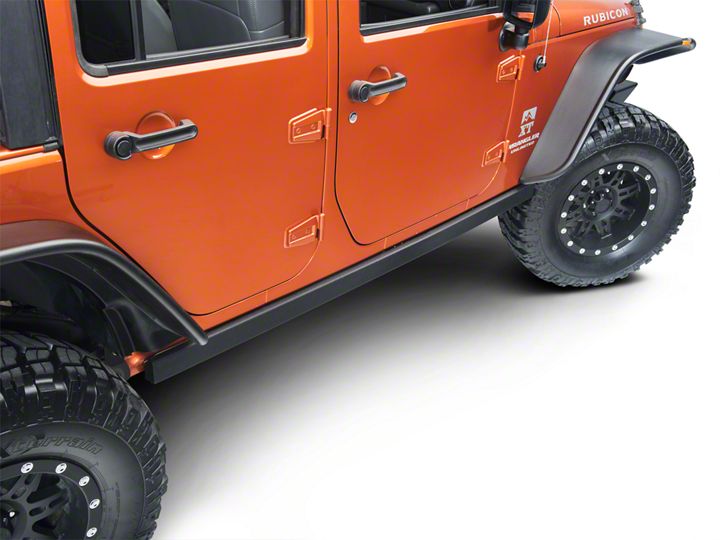

How to Install Smittybilt SRC Classic Rock Rails on your 2007-2013 Wrangler

Tools Required
  • Basic Hand Tools Required
Extreme Terrain
Shop Parts in this Guide

Step 1: Remove oem or aftermarket side rails/steps if equipped. (Fig A)

Step 2: Identify the passenger and driver side. Place the passenger side guard onto the
vehicle by lining up the 6 tabs (2 front , 2 center and 2 back) on the guard with the
already existing holes on the pinch weld area of your vehicle. (On some models you
may need to drill 2 holes) Fig A

Step 3: Identify the two holes (one front and one in the center) on the bottom of the body that the Nut-clips will be inserted into by where the top brackets of the guard align with. (You may Need to remove some tape that is applied from the factory that is covering the holes) Fig B,C,D


Step 4: Loosely attach the guard to the vehicle by inserting the 2-10mm hex bolts into the nut clips and 6mm lock-nuts onto the bracket studs that go through the pinch weld area. (Fig D)

Step 5: Insert the 8mm hex bolt with flat washer through the rear bracket into the factory threaded hole in the bottom of your body tub. (Fig E)


Step 6: Now proceed to tighten all of the bolts and nuts completely. Installation is now
complete. Follow these same steps on the opposite side.

CARE AND MAINTENANCE

To protect your investment it is recommended to regularly wash and wax this part. Do not use any type of cleaners that contain abrasives that may damage the finish of your part.​
