How to Install Smittybilt Security Stereo Floor Console, Black Denim on your 1987-1995 Wrangler

Tools Required
  • Basic Hand Tools Required
Extreme Terrain
Shop Parts in this Guide

IMPORTANT NOTICE:

Carefully read instructions before attempting to install this product. Smittybilt is in no way responsible for any damage to the vehicle or personal injury that may occur during the installation or use of this product. DRILLING REQUIRED

INCLUDED COMPONENTS

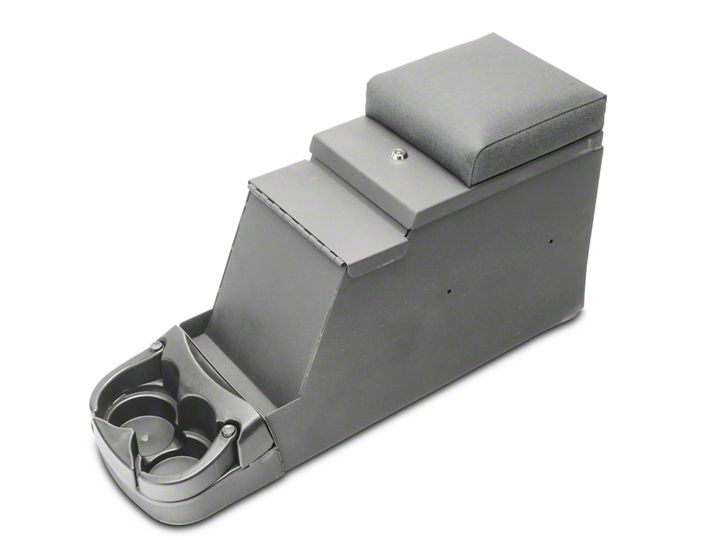

1 – Security Floor Console

1 – 5/16” x 1 ¾” Hex Head Bolt

1 – Mounting Bracket

3 – 5/16” Lock Nuts

2 – Keys

6 – 5/16” Flat Washers

1 – Neoprene Gasket

6 – 10-32 x ½” Hex Washer Phillips Screws

2 – 5/16” x 5 ½” Hex Head Bolts

4 – 10-32 Cap Nuts

2 – Seat Belt Straps

3 – 10-32 Lock Nuts

1 – Stereo Support Strap

INSTALLATION INSTRUCTION

1. Apply Neoprene Gasket to the bottom of the main compartment.

2. Locate (4)-Cap Nuts, (4)-10-32 x ½” Hex Washer Phillips Screws, (4)-10-32 Flat Washers, and (2)-Seat Belt Straps. Attach Seat Belt Straps to the side of the Security Console by using the hardware listed in this step (Figure 1).


3. Locate (2)-10-32 x ½” Hex Washer Phillips Screws, (2)-10-32 Flat Washers, and (2)-10-32 Lock Nuts. Attach Mounting Bracket to the two small center holes on the bottom of the console by using the hardware listed in this step (Figure 2).

4. Position Security Floor Console between the seats and mark the floor directly under the three mounting holes on the bottom of the Console (Figure 3). NOTE: Check to make sure that the shift lever will not interfere with console.


WARNING! Before you proceed to the next step, make sure that there is nothing under the vehicle that will be damaged by the drill bit when drilling.

5. Remove the Security Floor Console, cut holes in the carpet where the marks are and drill a 5/16” hole on each marked spot (Figure 5). Use touch up paint or silicone sealant (not included) in any drilled holes to prevent rusting.

NOTE: If you are not installing a stereo proceed to Step 12.

NOTE: If a stereo is to be mounted in the console, an antenna extension wire will be required and is available at most stereo equipment stores.

6. Run all required stereo and speaker wires to the console mounting location. Smittybilt recommends running wires in a protective wire loom and using rubber grommets when passing through any drilled holes.

7. Fasten the included Stereo Support Strap to the back of the stereo.

8. Insert stereo into the front of the Security Console.

9. Locate (1)-10-32 Lock Nut, and (1)-10-32 Flat Washer. Attach the other end of the Stereo Support Strap to the threaded stud located on the bottom of the console by using the hardware listed in this step (Figure 4).


10. Connect all wires to the stereo according to your stereo owner’s manual.

11. Locate (2)-5/16” x 2/12” Hex Head Bolts, (4)-5/16’” Flat Washers, and (2)-5/16” Lock Nuts. Fasten down the rear of the console through rear holes in the Security Console and holes in mounting Bracket by using the hardware listed in this step (Figure 5).

12. Locate (1)-5/16 x 1 ¾” Hex Head Bolt, (2)-5/16” Flat Washers, and (1)-5/16” Lock Nut. Fasten down the front of the Security Console by using the hardware listed in this step (Figure 5).


13. Installation is now complete. Note: To lock and unlock Security Console; insert key, push down and turn.
