How to Install Smittybilt Round Trail Mirrors (97-06 Wrangler TJ) on your Jeep Wrangler

Step 1: (JK) Remove the two upper side windshield bracket bolts using a #40 torx bit. (Fig A) (TJ) Remove the lower two side windshield hinge bolts (Fig B)

Step 2: (JK) Install the mounting bracket (the welded nut goes on the bottom) reusing the OEM bolts you previously removed (Fig C)

(TJ) Install the mounting bracket (the welded nut goes on the bottom) using the supplied two button head bolts.

Step 3: Slide bushings into bracket with the half moon cut out facing outward. (Fig D)

Step 4: Slide arm into busing lining up the holes at the end of the arm with the holes in the busing and mounting bracket. Secure and tighten with the included knob bolt. (Fig E)

Note: The mirror arms have two sets of holes in order to fit on both sides of the vehicle.

Step 5: Install and secure the mirror head onto the arm with the included 8mm hardware. (Fig F)

Step 6: Adjust the mirror head into the desired position. The head can be adjusted by loosening the screws on the back of it. (Fig G) When desired position is reach tighten screws. Check mirror clearance with door operation.

Note: It is recommended to use only with TJ when doors are off. Leaving doors on hinders the visibility on the passenger side.

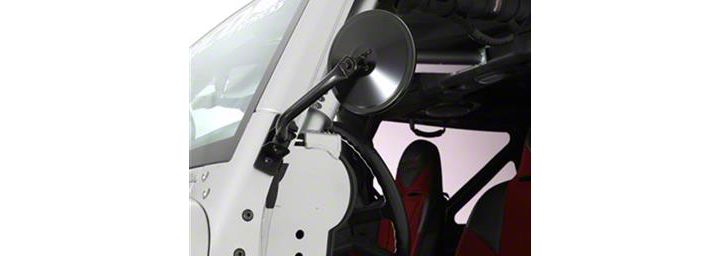

Step 7: Make sure mirrors are in the optimal location and all hardware is secured. Installation is now complete. (Fig H)

Note: For quick use anytime the mounting brackets can be left on when mirrors are not needed. (Fig I)
