How to Install Smittybilt Windshield Hinge Light Mounting Brackets - Black (07-17 Wrangler JK) on your Jeep Wrangler

NOTE: Carefully read entire instructions thoroughly before attempting to install this part. Drilling is required.

STEP 1: Remove the front two factory bolts from your windshield bracket.

STEP 2: Place the protective squares over the holes on the back of the light bracket.

STEP 3: Place bracket over windshield hinge. Punch holes through the protective square and insert bolts. Level the bracket to the desired location and tighten. ( Fig A)This completes installation for the driver side. Continue to Step 4 for further instructions for the passenger side.

STEP 4: (Passenger Side Only) Push grommet into round end of antenna bracket. Slide bracket down antenna to where its resting on top of the light bracket. The antenna bracket is secured to the light bracket by installing your lights. (Note: If you are not installing lights as this time, keep antenna bracket in glove box until lights are installed. (Fig B, C)

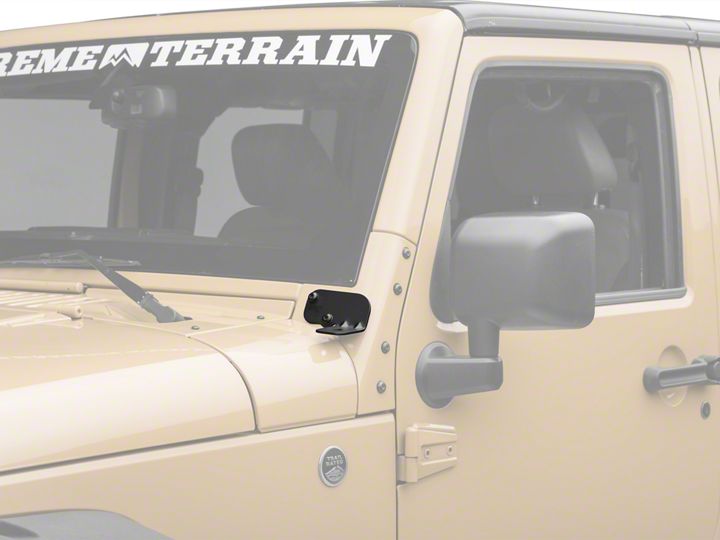

STEP 5: Installation is now complete. (Fig D)
