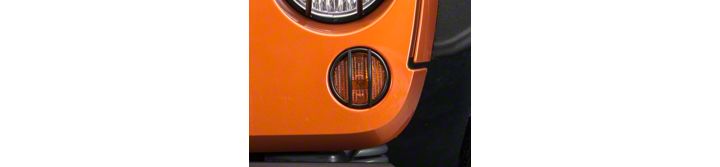

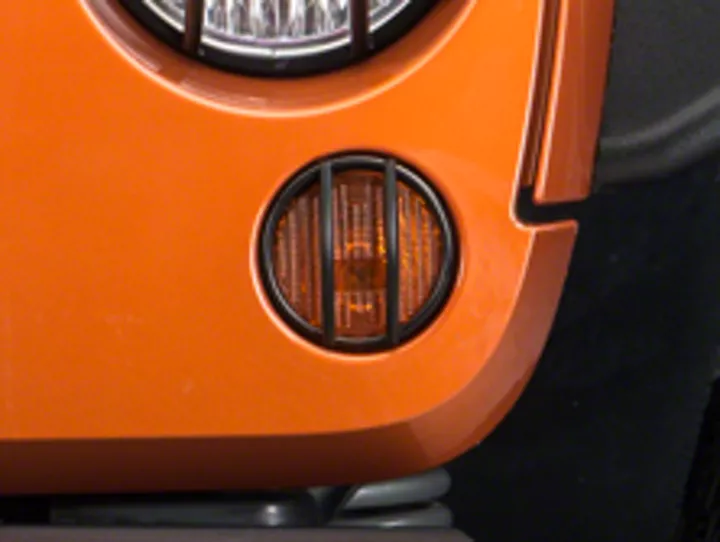

How to Install Smittybilt Euro Turn Signal Guards - Black - 2 Piece (07-17 Wrangler JK) on your Jeep Wrangler

Note: Read instructions entirely before installing this accessory.

Step 1: Remove front turn signal lights, by first disconnecting the wire loom plug (Fig A) by pulling out the red tab and pushing down on clip.

Step 2: Push in the center pin on each of the two clamps that hold the turn signal on the grille. (Fig B) You may then pull the turn signal out from the front.

Step 3: Line the three tabs on the light guard with the plastic extrusions on the side of the turn signal (Fig C) It may be easier to slightly bend one tab outward in order to connect the other tabs, once done simply push remaining tab on. (Fig D)

Step 4: Now insert turn signal back into front grille shell making sure both tabs lock into place. (Make sure guards are vertical)

Step 5: Reconnect wire plug you previously removed onto light.

Step 6: Installation is now complete.

Note: To complete your front light protection; purchase Smittybilt Headlight guards. Part # .Taillight guards are also available; Part # 8665
