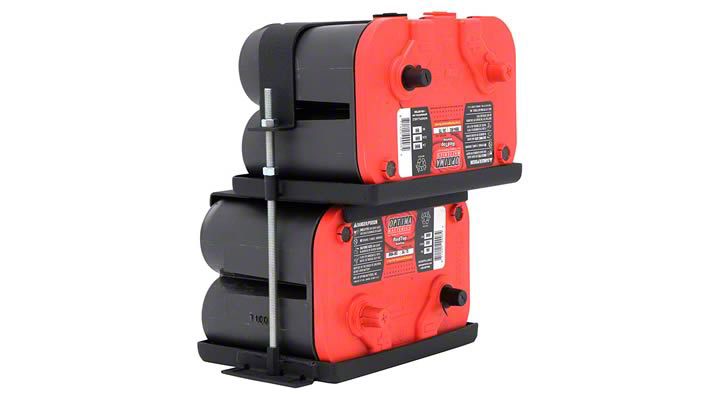

How to Install Smittybilt Dual Battery Tray on your 1997-2006 Wrangler

NOTE: Carefully read entire instructions thoroughly before attempting to install this part. This Dual Battery Tray only accommodates OPTIMA brand batteries. It is recommended to have the wiring portion of this product be done by a certified mechanic/installer. Use caution and care while working with batteries and electrical components.

STEP 1:
• Remove the factory/existing battery by first removing the terminals from the battery.
CAUTION: Do not let terminals/cables come into contact with any metallic parts.
• Remove the factory plastic hold down clamp on the front bottom portion of the battery.
• Remove the battery from the vehicle.
• You may now remove the factory battery tray and unclip the battery temperature sending unit. (Provisions will need to be made for the sensor in order to avoid the check engine light from coming on.) Fig A.

STEP 2:
• Install the lower battery tray using two of the original tray fasteners on the left (outside) of the bracket.
• Use the two provided counter-sunk bolts to secure the right (inside) of the bracket. Fig B.
• NOTE: the factory nut-clips can be moved slightly to help align the holes in the bracket if needed.

STEP 3:
• Install the first battery with the terminals down and pointing towards the front of the vehicle.
• Place the middle tray on top of the battery, making sure it fits snug.
• Slide the threaded rods through the holes in the middle plate and thread into the bottom plate.
• Install and thread hex nuts down the threaded rods to secure the middle tray down. Do not over-tighten them; this may cause damage to the battery. Fig C

STEP 4:
• Now place the second battery on top of the middle tray.
• Place the upper clamp over the battery and lineup the holes in it with the previously installed threaded rods.
• Secure clamp with hex nuts, again taking caution not to tighten too much in order to prevent damage to the battery. Fig D, E, F.

STEP 5:
• On later model TJ’s it may be necessary to move the PCM box forward slightly by removing the existing rivets, then moving the box and reinstalling new rivets. Fig G.
• Check to make sure NO wiring or air conditioning lines are in contact with the tray. Fig H
• Installation of the battery tray is now complete.
• To complete the wiring portion of this set-up it is recommended to have it done by an
automotive electrical specialist.
