How to Install SkyJacker Steering Stabilizer on your 1987-1995 Wrangler

Tools Required
  • Basic Hand Tools Required
Extreme Terrain
Shop Parts in this Guide

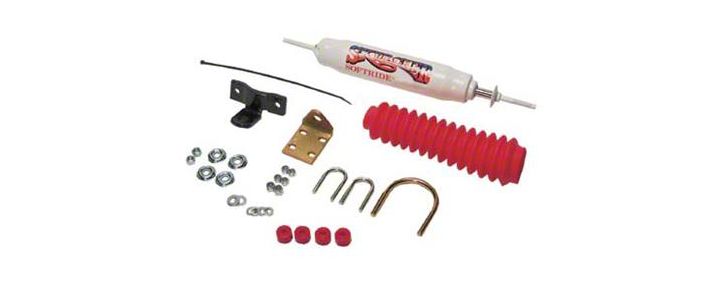

Bill Of Material Part#DescriptionQty
7900WSWHITE STEERING DAMPER1
BTIERED BOOT TIE1
B10RSRED BOOT1
HSSHYDRO SHOCK DECAL1
83031MAIN BRKT - 71091
83161UNIVERSAL TIE ROD BRACKET1
38X312FTB3/8 X 3 1/2 FINE THREAD BOLT2
516X1X134U5/16 X 1 X 1 3/4 U-BOLT RD2
38FTN3/8-24 FINE N/I LOCK NUT2
38SAEW3/8 SAE WASHER2
516CTN5/16-18 COARSE N/I LOCK NUT4
516SAEW5/16 SAE WASHER4
STEM BUSH-SSTSTEM BUSHING-STEERING STAB4
142120STAB WASH PKG - P889/1450982

(Park the vehicle on level ground with the tires pointing straight forward).

1. PASSENGER SIDE: Place straight frame bracket against inside of frame directly above drag link. (There may be a rubber frame shield, which is clipped at this spot. If so, pull shield at corner and it should pop loose.) Mark and drill the 2 holes in the frame.

2. Move any hoses or lines that may get in the way of drilling as not to damage them in the drilling process. Drill through frame with 3/8" drill bit. Bolt bracket into place with hardware furnished. Re-connect frame shield.

3. Install the boot & tie onto the stabilizer. Mount the angled bracket on to the drag link (this is the link going to the pitman arm), loosely, using u-bolts, nuts and washers furnished. Attach main end of stabilizer to main bracket using hardware furnished. Pull stabilizer rod out 4". Attach stabilizer to drag link bracket using hardware furnished. Tighten bracket at this time.

4. Re-tighten all bolts at this time. Re-tighten after the first 100 miles and periodically thereafter.

5. Thank you for choosing Skyjacker!

Seat Belts Save Lives, Please Wear Your Seat Belt.
