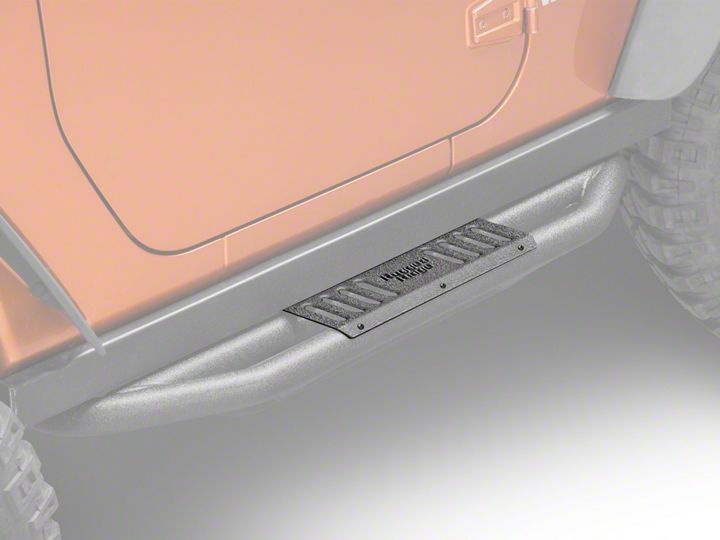

How to Install Rugged Ridge RRC Side Armor Guard Plates for Rugged Ridge Nerf Bars (07-18 Wrangler JK 2 Door) on your Jeep Wrangler
Installation Time
1 hours
Tools Required
- Drill
- 9/64" Drill Bit
- Center Punch
- Phillips Head Screwdriver
Shop Parts in this Guide
CONTENTS:
Front Step Plate (2)
HARDWARE:
Self-Tapping Screw (12)
NOTICE: Careful attention is required to this instruction or operation, but does not generally relate to pesonal injury. Damage to your product or other property may result if you do not follow instructions.
1. With RRC Side Armor installed, allign Front Step Plates under doors and mark hole locations.
2. Remove Step Plates, uninstall RRC Side Armor, re-mark hole locations with a Center Punch, and drill pilot holes with a 9/64" Drill Bit.
NOTICE: Use caution when drilling pilot holes to not drill through both sides of tube and to ensure best possible fit of product.
3. Place Step Plates on RRC Side Armor and attach with the supplied Self-Tapping Screws using a Phillips Head Screwdriver. Re-install RRC Side Armor.
