(approx) 2 Hours
Light to Moderate mechanical skill required.
$549.99 (kit)FREE Shipping
I'm Ryan from extremeterrain.com, and this is my review of the Rugged Ridge XHD Modular Snorkel Kit, fitting all 2007 and of JKs. There are a couple of different versions of this snorkel kit available, depending on which engine you have in your jeep, so make sure you get the right one for your year. There are also a couple of different configurations of this snorkel. Because, of course, this is a modular kit, where you see in front of me includes just the low-mount. However, the high-mount is available with or without the pre-filter, and you can also purchase the pre-filter separately, and then there is a kit that comes with the high-mount and the low-mount, and really all of the pieces, all in one box for you as well, if you decided to go that route. This installation is going to be a three out of three wrenches. There is going to be a good bit of cutting, grinding and drilling involved in installing this in your jeep. However, Rugged Ridge does have the forethought to provide a bracket, to reinstall all of your factory body panels in their factory location, if you were ever to get rid of the snorkel kit, so that is a nice feature, but we'll talk a little but more about the installation in a bit. We're also gonna talk through the construction in a few of the features of the system. The basic reason to run a snorkel on your jeep, is to raise up the air intake allowing you to do deeper water crossings, without the risk of sucking water into the engine. Having water in the engine will hydro lock the motor, which can cause a lot of damage, and possibly even replacing the motor. So, if you are going to do some deep water crossings, a snorkel is a good idea. And if you're going to run a snorkel, you need to know that it's going to work, and it's not going to have a lot of different pieces that snap together, that aren't watertight, and still going to let water into your engine. So in my opinion, if you are running a snorkel, because you're going to use it for its intended purpose off-road, you're gonna want to spend a little bit of money, and get a good one that you know is going to work.Now, there are a lot of you out there that just want to run a snorkel, because you like the way it looks. And if that's the case there are some less expensive options than this one on the market. Or there are some of you that just want to run a snorkel because it's a true cold air intake. This will draw engine air from outside of the engine compartment, giving you fresh, cool, clean air, which can help with the performance of it. And if that's your reason for running a snorkel, again, you can go with one of the less expensive snorkels than this one. But if you are gonna do some deep water crossings, and you want to spend a little bit of money and make sure you get one that is going to keep water out of the engine, like this one.Now, I really like this kit in particular from Rugged Ridge because it is modular. I'm one of the people out there that doesn't love the look of a snorkel going up the A-pillar of your jeep. With this modular what it allows you to do is run the low-mount, which is still visible but not nearly as much as a high-mount. You can run this on the street, or you can run this when you're running trails that are fairly dry, but with a couple of screws, you can remove the low mounts, and snap the high-mount into place, and you have an extra degree of protection if you do plan on doing some deeper water crossings.Now, I mentioned that there are some less expensive options of snorkels out there on the market, if you're not really going to be using it for its intended purpose of deep water crossings. As far as other snorkels that are well-built, are water tight and are ready to do those deep water crossings, this one isn't that much more expensive than the tough tier snorkels on the market. And to gain the ability to have the modular system that allows you to run the low-mount, I think that this is a pretty good deal. This kit does include all of the components you're going to need to get it installed. starting at the factory air box, this is the new lower section with a new molded intake built right into it that's going to attach to the silicon pipe, the aluminum pipe, all the way out to, of course, the snorkel section. Now, this snorkel piece runs on the inside of your fender, and the top portion that you actually see replaces the corner cowl on your jeep. So again, it is very low profile. It doesn't take up a lot of space. It doesn't run all the way up to your A-pillar until you snap that high-mount into place when you need that functionality.Overall, this is a one-piece molded plastic which, again, that's what I talked about before, getting rid of any additional joints that can let water in, this is going to be very, very functional. This is designed with a U-shape pear[SP] on the intake and it has a drain in the bottom. So if you were to splash any water up into your low-mount or even into your high-mount, if you went that deep, it would be able to drain out before getting into your factory air box. So the factory air box also is designed to drain any water out that you may get in. So you do have redundant safety measures built in, doing everything possible to keep water out of your engine which, of course, can be catastrophic.As far as the installation is concerned, as I said before, this is a three out of three wrench installation. This does require a good bit of modification to your jeep. Now, all of that being said, Rugged Ridge does provide you with a bracket, so that even though you're cutting, and drilling, and making modifications to your jeep, if you ever got rid of this snorkel kit, you would be able to reinstall that factory cowl corner piece, because of the bracket included. It's a really nice feature from Rugged Ridge. Oftentimes, when you do those permanent modifications to your jeep, there's no way back with the bracket that they include. You can return back to factory which again is something I really like. Either way, the installation does require a lot of cutting and drilling, so if that something you're not comfortable with, there is no shame in taking this to a shop and having them install it in your jeep. The first step in the installation is actually loosening and partially removing your factory fender. You're going to do that in order to get this snorkel installed. So there are a bunch of bolts that you'll have to remove, part of the inner fender liner, down to the pinch seam, a lot of bolts you have to remove and loosen in order to get that fender removed. You'll also be removing the cowl cover, and eventually removing your cowl corner. That's where you end up having to drill out some welds, do some cutting with a cut-off wheel, have a Dremel handy to clean up those cuts, of course you're gonna want to paint any of those areas of the sheath, nail that you've cut to keep them from rusting, all of that so we can fit the snorkel section in place and, of course, there's some modification to the air box with this new air box lower section, and then all of the piping and all of the hardware to make all of this stuff work together.Once you're done with that, actually, changing from the low-mount to the high-mount is a very simple process. There's just a couple of screws that you'll need to remove to pop the low-mount off to snap the high-mount into place, so that's not really a big deal. But actually getting the snorkel section installed in the engine bag is going to be a lot of work that requires a lot of cutting and drilling.If you do plan on tackling this yourself, this is going to be an install that I would set aside probably around four to even five hours to get done, start to finish. You are going to want be very careful with those cuts, of course. There's a lot of disassembly and a lot of reassembly to do to get this done. And, again, if you do decide to tackle this yourself, you are going to need a cut-off wheel, or you're going to need a Dremel, a drill, pretty much every tool that you might have in your toolbox to get this done.I mentioned before that I think this is really fairly priced and I stand by that. There are certainly less expensive snorkels on the market. but I wouldn't trust them to go through deep water in my jeep. They have too many joints, too many areas, where they can fail, and getting water into the engine can be catastrophic, can be very expensive, not to mention leaving you stranded on the trail. So for my money, if I'm going to be using a snorkel for the purpose of going through deep water, this is the style of snorkel I want to get, something that is a one-piece molded snorkel. And I really like this one even over some of those top tier snorkels on the market. because of the flexibility, because this is modular. I love the idea of running the low-mount when I'm on the street or even doing some drilling and drier environments but having the opportunity to snap the high-mount into place if I plan on going through some deeper water, so that I can have that extra level of security.So if you're looking to pick up a snorkel because you plan on going through some deep water you just like the...or because you want a truly cold-air intake, I think that this is going to be a really nice option for you. I personally love the fact that this is modular, it gives you both the low-mount and the high-mount option, even though the installation is a little bit involved.So that's my review of the Rugged Ridge XHD Modular Snorkel Kit fitting all 2007, and of JKs that you can find right here at extremeterrain.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation

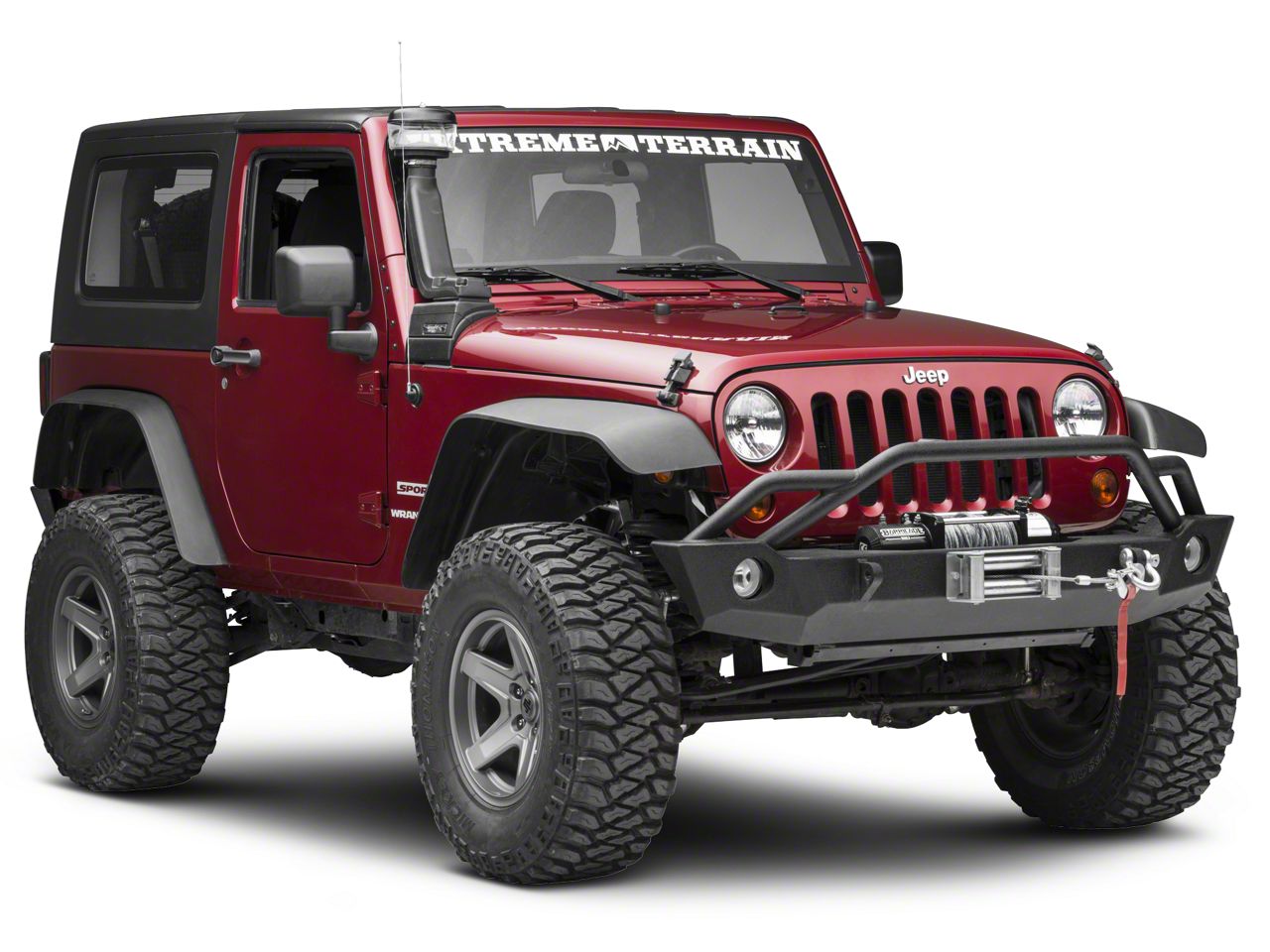

Intake. Rugged Ridge offers this XHD Snorkel Intake for the extreme off-roader. The air tubing is constructed out of mandrel bent aluminum for maximum air flow.
Filter Specs. This snorkel comes with a clear pre-filter, and you have the choice of two mounting options. The low mount option places the pre-filter just below the windshield. The high mount position raises the filter another 21 inches to put it at the top of the windshield. This system allows you to switch between the two setups easily.
Additional Features. Equipping your rig with a snorkel allows you and your Jeep to go through large mud puddles you could not otherwise wade through. The snorkel prevents the intake from taking in water and hydrolocking your engine. Rugged incorporated channels into this intake design to direct water away from the intake. The snorkel also reduces the stock filter's exposure to dust, grime and dirt to extend the life of your filter. Installing this snorkel requires slight modification of the stock fender. All hardware is included to complete the installation.
Application. This Rugged Ridge XHD Snorkel with Pre-Filter is designed to be used on the 2007-2018 Jeep Wrangler JK Models.
Fitment: 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
October 06, 2017
Haven't had the opportunity to do any fording yet, so i can't speak to that. Fits good with the exception of the fender liner. Drove through a rain storm and the pre-filter did a good job of collecting the water. Looks awesome and I love the modularity.Helpful (10)
September 10, 2017
Start off, same as always, very fast shipping from extreme, great packaging materials. The snorkel looks of good quality and seems that every effort has been taken in design to keep the water out. Others in the past I have wondered about, but not this one. Fitment could use some better design. It doesn't quite line up, had to heat the main body and bend to get the bolt holes to line up. It was about 1 1/2 inches off. The cutting template was also not correct, it did not line up with the reference holes from the factory at all. Lastly my jeep is a 2010 jku sahara, it does NOT allow you to use the factory inner fender, I have tried every configuration possible, it literally cannot work, the diameter of the aluminum pipe will not clear behind the factory inner wheel well ( splash shield) thus makes the bottom of the flare stick out about 1-2 inches. This may not be noticible if you don't have mud guards, but if you do it puts them at a angle and looks all wrong. Also the rear most inside bolts ( the shank one on the inner fender flare) they won't even come close to going back in. So you have a couple options, upgrade to flat fenders and loose the splash guards. Cut the back half of your splash guard, or try to heat it and mold it accordingly. But without a doubt, this will not fit without extra modification not provided in the directions. Back to the look and quality, the components are all there, they are well built aside from the fitment issues. I feel safer with this setup than the traditional through the hood setup. It also addresses the bolts in the bottom of the intake box and are sealed with the sealant. I like the fact that you should be able to go back to stock, haven't verified but your supposed to be able to. End feelings: For the price, fitment should not be this off. Being almost double of others, it should fit without issue as the directions explain. Would I buy it again? Definitely! I don't mind the fab work, but some do and is why I wrote all this in here for you.Helpful (16)
Can the clear pre-filter be used in the low mount position? A la military HMMWVs?
The Rugged Ridge XHD Snorkel Pre-filter only is compatible with the high mount extension on the Rugged Ridge XHD Snorkel.
Hi Im from Spain and Iike this kit but, Can you send this kit to Spain? And is this kit working correctly for diesel 2.8 CRD from Europe? Waiting for your reply Thanks in advance
We do not offer international shipping, nor can we confirm fitment with European models.
Does this come with both the lower and high intake (pre filter)? Or just the high pre filter?
This includes the low and high mount options.
Will this snorkel fit (either full height or the lower) while the jeep has equipped a gobi stealth roof rack?
Will this work with a smutty built roof rack that attaches to the a pillar via the 4 bolts on the side windshield bracket.
lt would not, there would not be sufficient clearance between the rack and the snorkel.
The Rugged Ridge XHD Snorkel with Pre-Filter will work with all tubular fender flares we have tested. Complete replacement fenders have not yet been tested.
Most likely this would not be able to accommodatea 50" light bar, however, we have not test fit this combination at this point in time.
The Rugged Ridge XHD Snorkel with Pre-Filter will fit your JK Wranlger equipped with a 1.25" Body Lift.
Hello! When the Rugged Ridge XHD Snorkel with Pre-Filter is installed in a high mount position you would have interference with an A pillar light mount. There is a bracket on the high mount system that would not bolt on correctly with the A pillar mount.
The MORryde Side Mount Tray should not interfere with the Rugged Ridge XHD Snorkel, but we do recommend test fitting prior to installation.
The Rugged Ridge XHD Snorkel with Pre-Filter includes the tube and prefilter. It does not include the ram mount as it is replaced with the prefilter.
Hello, this snorkel will prevent any water from going into the intake since it is raised and sealed underneath the hood.
