How to Install a Rugged Ridge Black 1 pc. X-Clamp on your 87-18 Jeep Wrangler YJ, TJ, JK & JL
Shop Parts in this Guide
- Rugged Ridge X-Clamp for 2.25 to 3-Inch Tubing; Black (Universal; Some Adaptation May Be Required)
- Rugged Ridge 3-Inch Square LED Light with Large X-Clamp Kit; Black (Universal; Some Adaptation May Be Required)
- Rugged Ridge 3-Inch Square LED Light with Large X-Clamp Kit; Silver (Universal; Some Adaptation May Be Required)
- Rugged Ridge X-Clamp for 2.25 to 3-Inch Tubing; Silver (Universal; Some Adaptation May Be Required)
Pivotal Fit Technology Explained

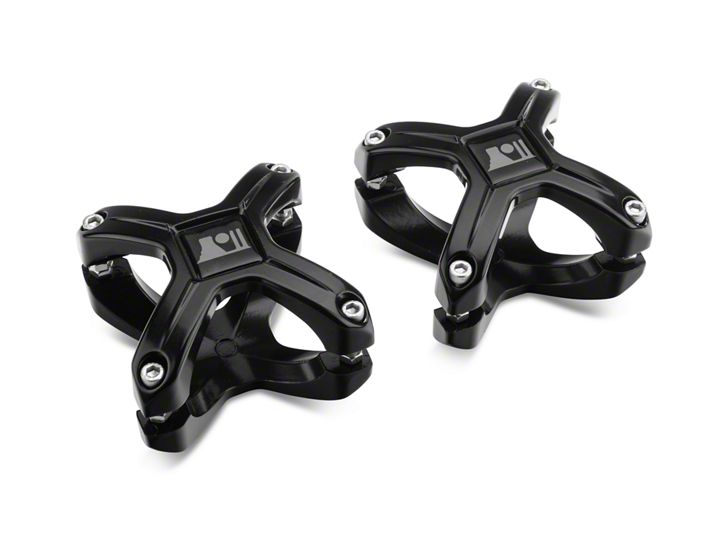

The X-Clamp from Rugged Ridge® features an innovative and unique adjustment which allows mounting to tubes ranging from 2”-3” in diameter. Rotate the X-Clamp to fit your tube, and pivot the mounting bracket to the desired position.
1. Disassemble the X-Clamp Front and X-Clamp Back by loosening the jam nuts then removing the 4 bolts and 8 jam nuts.
2. Determine the correct orientation to mount the X-Clamp by holding the X-Clamp Front and X-Clamp Back to the tube. Rotate the X-Clamp pieces 90° to make sure you have the correct orientation.
3. Select appropriate bolt length for your tube diameter. 2.5” and 3” diameter tubes require jam nuts. Note: to prevent jam nut interference with the high point of tube, keep jam nuts separate on bolt shaft during install.
4. Attach X-Clamp to tube by gradually tightening all bolts evenly in an “X” pattern. Tighten to 3 ft-lbs. Do not exceed 3 ft-lbs.
5. Tighten jam nuts to a snug fit. Do not over tighten. Make sure bolts are tightened before tightening jam nuts.
6. Attach mounting tab to X-Clamp Back. Tighten to 8 ft-lbs.
NOTICE
Apply red Loctite(R) or equivalent thread sealer before tightening threads of flat head screw.
7. Apply logo to recess in X-Clamp Front.
WARNING
Inspect and retourque fasteners after first 50 miles and frequently thereafter, particularly after use off-road.
DO NOT USE & REPLACE IF X-CLAMP OR FASTENERS BECOME DAMAGED.
