How to Install Rugged Ridge Windshield Mounted Light Bracket Pair, Stainless Steel on your Wrangler

Step (1)

Remove the upper two windshield torx head bolts. DO NOT DISCARD. Place new light guard over holes and reinsert torx head bolts, align bracket and tighten (Fig.1). The dense foam backing is supplied to keep paint from being damaged or scuffed if removed at a later date.

Step (2)

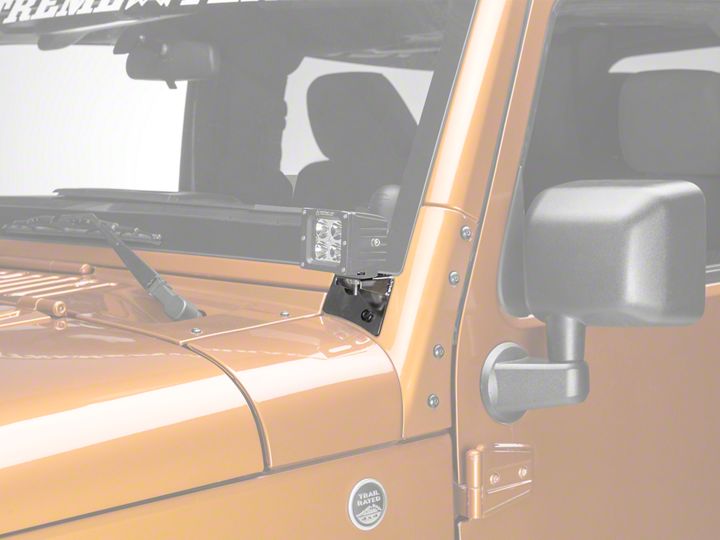

Install lights into mounting tabs, position as desired and secure using light manufacturer’s instructions (Fig.2). For wiring of lights please refer to instructions supplied with your aftermarket light kit.

Step(3)

Repeat steps 1 and 2 for other side.

NOTE: It is up to the end user to decide proper routing and wiring to aftermarket lights. Neither Rugged Ridge or OMIX- ADA except responsibility regarding this application.
