How to Install Rugged Ridge Sherpa Roof Rack Adapter Kit On Your 07-14 Wrangler

Tools Required
  • Basic Hand Tools Required
View PDF Guide
Extreme Terrain
Shop Parts in this Guide

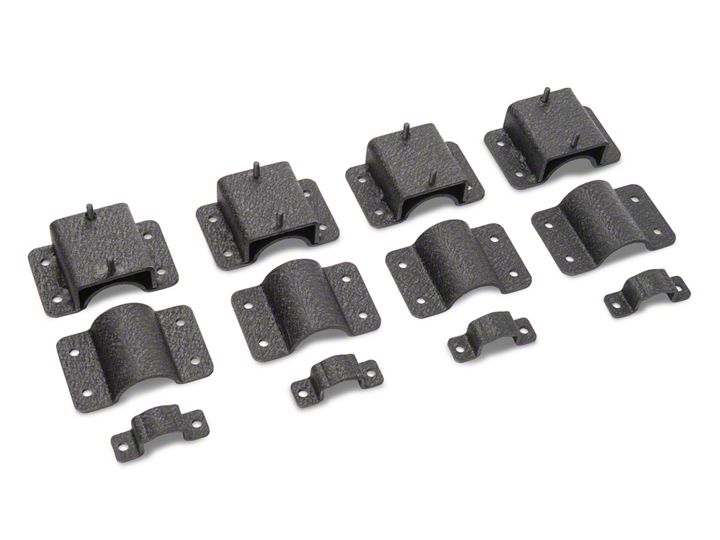

Contents:


1. Upper Clamp Bracket (4)


2. Lower Clamp Bracket (4)


3. Crossbar Bracket (4)


4. M6x20 Flange Bolts (16)


5. M6 Nylon Lock Nuts (24)


6. M6 Flat Washer (24)


NOTICE Crossbar adapters are designed to work Thule® and Yakima® accessories and mount to Rugged Ridge® 11703.01, 11703.02 or other 2” or 50mm tubing.



Crossbar Adapters

1. Use the supplied M6 hardware to
attach the upper and lower clamp brackets to the tube.


Note: It is recommended to leave fasteners loose until desired position is chosen based on aftermarket accessories to be installed.


2. Using the supplied M6 hardware,
attach the crossbar bracket over the
chosen aftermarket crossbar. Tighten until crossbars are secure.


Note: It is recommended to leave fasteners loose until desired position is chosen based on aftermarket accessories to be installed.
