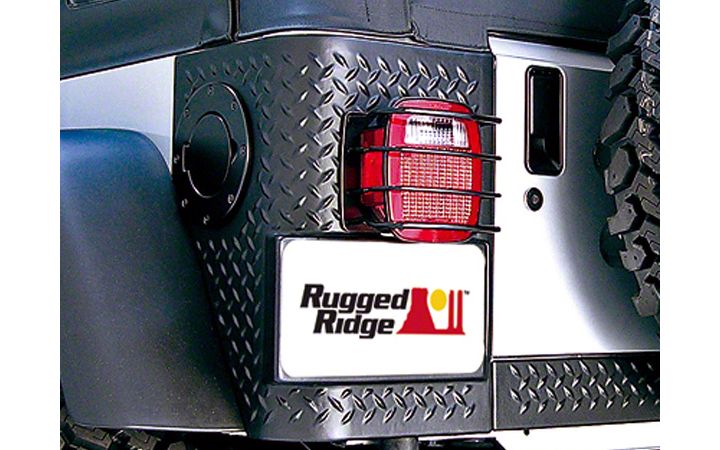

How to Install Rugged Ridge Rear Euro Tail Light Guards, Black on your 1987-2006 Wrangler

Tools Required
  • Basic Hand Tools Required
Extreme Terrain
Shop Parts in this Guide

Step 1: Remove the four Phillips head  screws from the tail light lens.

Step 2: Remove the tail light lens cover.  Note: Use caution as the lens may  stick to the light housing.


Step 3: Remove the 3 tail light assembly  retaining bolts.

Step 4: Remove the tail light housing from  from the body.


Step 5: Carefully pull the tail light wiring through the  hole. Guide the connector through the hole.

Step 6: Disconnect the tail light harness from the  main harness.


Step 7: Guide the tail light wiring through the new Euro Tail Light Guard.

Step 8: Re-connect the wiring connectors and guide the wiring back into the body.


Step 9: Reinstall the tail light assembly and Euro Tail Light Guard to the original mounting holes using the factory hardware previously removed.

Step 10: Carefully guide the taillight lens back on to the tail light housing.


Step 11: Reinstall the four screws removed in step 1. Caution: Be careful not to over tighten these screws. Over tightening will crack the lens.

Step 12: Repeat steps 1-11 for the opposite side.

Step 13: Check tail light operation. Installation of your New Euro Tail Light Guards is now complete.
