How to Install a Rugged Ridge All Terrain Stubby Bumper Ends on your 07-18 Jeep Wrangler JK; 2018 Jeep Wrangler JL

Installation Time

1 hours

Extreme Terrain
Shop Parts in this Guide

Components:
1. Over Rider (11541.14/11542.14)
2. Winch Plate (11541.13)
3. Aluminum XHD Bumper (11541.02)
4. Stubby Ends (11541.10/11542.23)
5. All Terrain Bumper (11542.02)
6. Mini Stinger (11542.13)


Contents:

1. Winch Plate
2. M6 Bolt Short (1)
3. M6 Bolt Long (1)
4. L-bracket
5. M6 Flat Washer

6. M6 Nylock Nut
7. Nut plate (2)
8. M10 Flat Washers (2)
9. M10 Hex Bolts (2)

1. Remove the factory bumper. Remove the Factory vacuum pump. Save removed hardware.

2. Remove and flip bushing. Re-attach in flipped position.


3. Disconnect vacuum pump air-line and wire  harness. Do not detach indicated green harness.

4. Rotate vacuum pump.

5. Attach vacuum pump to rear factory stud  using hardware removed in step 1. Re-attach  air-line and wire harness.

6. Attach L-bracket to vacuum pump.


4. Rotate vacuum pump.

5. Attach vacuum pump to rear factory stud  using hardware removed in step 1. Re-attach  air-line and wire harness.

6. Using M6 Long hardware attach L-bracket to  vacuum pump. L-bracket should attach at the  bottom of vacuum pump bushing.


7. Position winch plate on top of the frame horn.

8. Insert nut plate and attach using M10 hardware.


9. Secure L-bracket to winch plate using M6 hardware.


Contents:

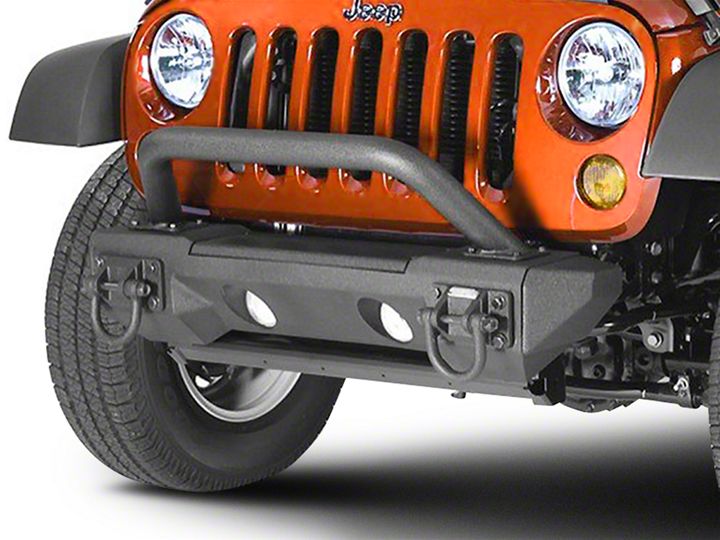

1. Aluminum Hoop Over Rider (1)

2. M6 Hex Bolts (8)

3. M6 Washer (16)

4. M6 Nylock Nuts (8)

1. Remove Aluminum XHD bumper or All Terrain bumper if previously installed. Twist plug at rear of fog light to disconnect wiring. Slide the bumper off frame.

2. Position over rider on top of bumper with hoop leaning forward. Align mounting holes with  slotted cutouts on the XHD Aluminum Bumper, or with 4 holes on All Terrain Steel Bumper (remove pre-installed rubber plugs from holes on All  Terrain steel bumper). Install using M6 hardware.

3. Follow bumper instructions to reinstall bumper and over rider. Reconnect light harness to fog lights.


Contents:

1. Mini Stinger (1)
2. M8 Bolt (8)
3. M8 Washer (16)
4. M8 Lock Nuts (8)

1. Remove Aluminum XHD bumper or All Terrain bumper if previously installed. Twist plug at rear of fog light to disconnect wiring. Slide the bumper off frame.

2. Position mini stinger on top of center section. Align mounting holes with slotted cutouts on the XHD Aluminum Bumper, or with 4 holes on All  Terrain Steel Bumper (remove pre-installed rubber plugs from holes on All Terrain steel bumper). Install using M6 hardware with the washers on bottom.


3. Fasten d-ring portion of mini stinger and  center section to frame rails using M12 hardware and nut plates. Tighten evenly. Rubber gaskets included with Aluminum XHD mount between  d-ring section of mini stinger and center section.


Contents:
1. Bumper Shell
2. M12x60 Bolt (8)
3. M12 Washer (8)
4. M12 Nut Plate (4)
5. Sheet Metal Screws (8)
6. M8 Flat Head Bolt (4)
7. M8 Washer (4)
8. M8 Nut (4)
9. Cover Plate

1. Remove factory front bumper. Twist plug at rear of fog light to disconnect wiring. Unscrew fog lights.

2. Install factory fog lights into center section using sheet metal screws.


3. Attach cover plate to center section using M8 hardware.


4. Fasten d-rings and center section to frame rails using M12 hardware and nut plates. Tighten  evenly. Rubber gaskets included with Aluminum XHD mount between d-rings and center section. Note: D-ring holes are spaced wider at top of bracket.

5. Reconnect fog light wiring plug


NOTICE: Bumper should be installed on vehicle prior to stubby end installation

Contents:
1. Stubby End (2)
2. M12 Hex Bolt (6)
3. M12 Washer (12)

1. Remove plastic plugs from sides of center section if present.

2. Attach stubby ends to center section using M12 hardware. Note: Bolt heads should be inside stubby ends and lock nuts inside center section.
