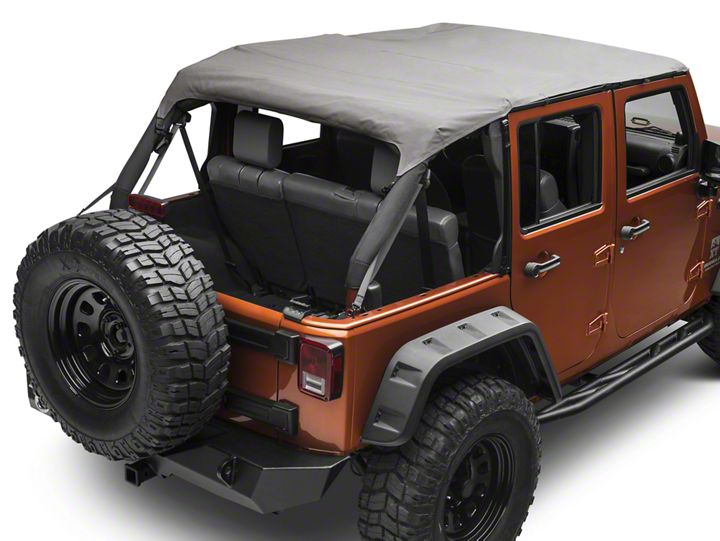

How to Install Rugged Ridge Pocket Island Top - Khaki Diamond (10-18 Wrangler JK 4 Door) on your Jeep Wrangler

Installation Time

90 minutes

Tools Required
  • Box Cutter/Knife
  • Hard Top Removal Tool/Torx Bit
  • Windshield Channel
Extreme Terrain
Shop Parts in this Guide

1. Remove the two front freedom panels of the hard top (Figure A).


Figure A

2. Remove the rear hard top (Figure B).


Figure B

3. Layout the top in the sun to stretch the fabric from heat (Figure C).


Figure C

4. Connect the top to a windshield channel (not provided) (Figure D).


Figure D

5. Place the top over the vehicle (Figure E).


Figure E

6. Clip both inner straps to the center roll bar (Figure F).


Figure F

7. Run the fabric straps over the rear roll bar and through the buckle (Figure G).


Figure G

8. Attach the metal clips into the outer tub of the vehicle (Figure H).


Figure H

9. Run the rear strap around the rear bar (at the seatbelt) and connect into the oval hole of the rear tub (Figure I).


Figure I

10. Attach the Velcro straps around both roll bars (around handles if attached) (Figure J).


Figure J

11. Tighten the rear straps down (Figure K).


Figure K

12. Attach the windshield channel to the windshield bracket.


13. Tighten all straps down completely.


Before

After

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 07/13/2018
