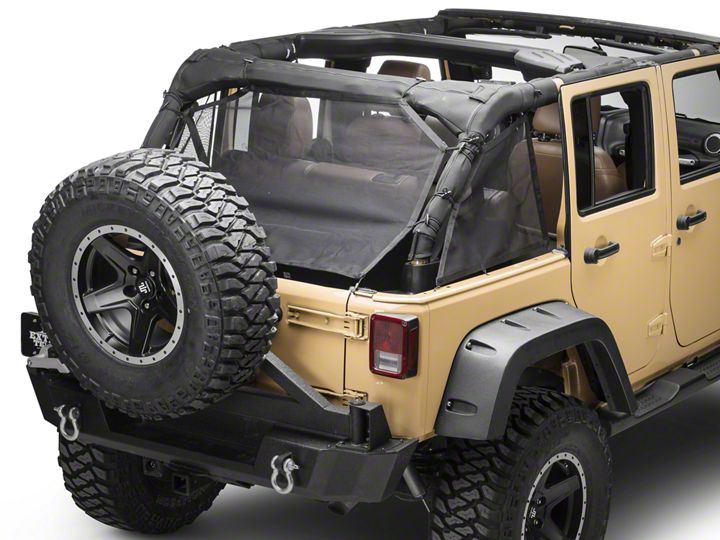

How to Install Rugged Ridge Eclipse Cargo Barrier (07-16 Jeep Wrangler JK) on your Jeep Wrangler

Installation Time

60 minutes

Tools Required
  • Box Cutter/Knife
Extreme Terrain
Shop Parts in this Guide

1. Remove the hard top from the vehicle or lower the soft top (Figure A).


Figure A

2. Lay the cargo barrier over the rear of the vehicle, plastic hooks at the bottom (Figure B).


Figure B

3. Run one of the two top elastic cords around the rear roll bar (Figure C).


Figure C

4. Slide the plastic notch through the elastic cord loop (Figure D).


Figure D

5. Repeat Steps 3 and 4 on the other side (Figure E).


Figure E

6. Connect each of the four side straps using the same method as Steps 3 and 4 (Figure F).


Figure F

7. Slide each of the plastic hooks over the tub lip on the rear side of the vehicle (Figure G).


Figure G

8. Connect the top of one of the side barriers using the same procedure as Steps 3 and 4 (Figure H).


Figure H

9. Place the bottom hooks in the corresponding holes (Figure I).


Figure I

10. Repeat Steps 8 and 9 on the other side (Figure J).


Figure J

Before

After

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 07/01/2018
