How to Install Rugged Ridge Stainless D-Rings Pair w/ Xtreme Heavy Duty Bumper on your Wrangler

Tools Required
  • Basic Hand Tools Required
Extreme Terrain
Shop Parts in this Guide

Contents:

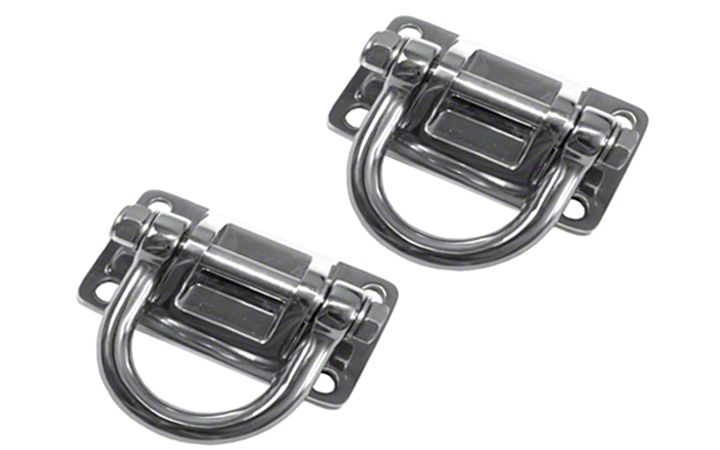

1. Stainless Steel D-Rings (2)
2. 12mm Stainless Washer (8)
3. 12mm Stainless Bolt (8)


1. If installing as part of a new installation, place Center Section of Bumper onto frame rails, but do not yet attach. If SS D-Rings are being added to an existing installation, remove existing D-Rings from Center Section. Center Section should be sitting on the frame rails, but not attached (Figure 1).


2. Install 8 SS Bolts through the SS Washers, through the SS D-Rings, through the Center Section, through the Frame Horns, and into the Washers and Lock Nuts provided with Center Section. Do not tighten any of them yet.


3. Once all 8 bolts have been started, tighten them. Installation is now complete!


Congratulations on the purchase and installation of a quality Rugged Ridge product! Ask your retailer about the following additional accessories to the JK Modular HD Bumper:
