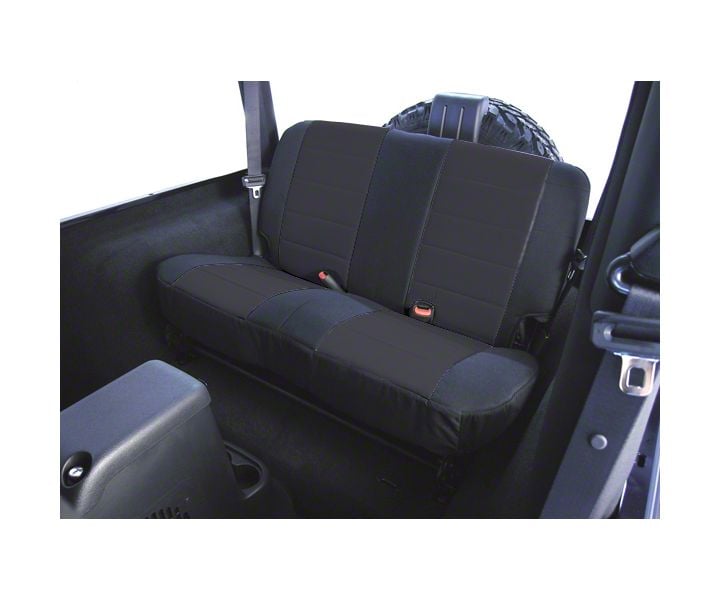

How to Install Rugged Ridge Custom Fabric Rear Seat Cover - Black on your Wrangler

Installation Time

10 minutes

Extreme Terrain
Shop Parts in this Guide

Parts included:
Rear seat upper neoprene seat cover section.
Rear seat lower neoprene seat cover section.

Step (1) Set the cover sections out to identify the upper from the lower section (a). The upper sections can be identified by looking at the slit sewn in for the release lever on the top upper section of the seat (if applicable).

Step (2) The process will be easier if you install the upper section first. Begin by opening the flaps on the bottom of the upper cover section. Slide the upper section over the top of the upper section of the seat. (a, b).

Step (3) Push the lower front side flaps between the upper and lower sections of the seat (a). Flip seat forward and connect the bottom flaps from the front and rear of cover to each other using the attached Velcro (b).

Step (4) Flip seat back into locked position. Slide lower section cover onto bottom section of rear seat. Push flaps between the upper and lower sections of the rear seat. Flip seat forward. Use Velcro to attach to bottom flaps of lower seat section’s carpeted surface. Pull side flaps around bottom section of seat and use Velcro to attach to side of the seat (a). Flip seat back into locked position. Use Velcro along front of lower cover section to attach to underside of lower seat section (b).




Step (5) Check fitment and Velcro Step (5a) Step (5a) connections (a,b). Loosen connection where neoprene is over stressed and adjust fitment as needed.
