How to Install Rugged Ridge Arm Rest w/ Full Hard Doors on your 1987-1995 Wrangler

INCLUDED COMPONENTS

2 – Arm Rest Padding

2 – Brackets (Left & Right)

4 – Phillips Sheet Metal Screws

4 – Phillips Machine Screws

INSTALLATION INSTRUCTIONS

1) Remove the factory door closure strap by unscrewing the two screws holding it in place (Figure 1).

2) Attach Bracket to door using the same holes that previously held the factory door closure strap. Use the included Phillips Sheet Metal Screws to attach Bracket to door (Figure 2).

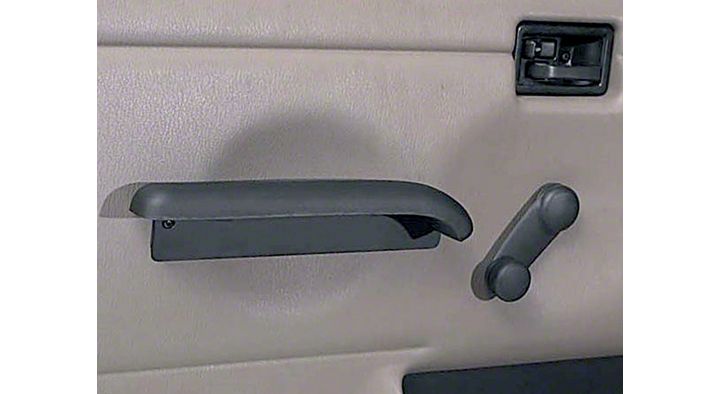

3) Mount Arm Rest Padding onto Bracket. Use the included Phillips Machine Screws to attach Padding onto Bracket (Figure 3).

4) Adjust Padding fore and aft to your position of maximum comfort.

NOTE: To mount the Arm Rest on some CJ models, you must enlarge the holes in the Bracket to ¼” and mount the Bracket to the door using ¼”-20 x ¾” button head screws (NOT INCLUDED).
