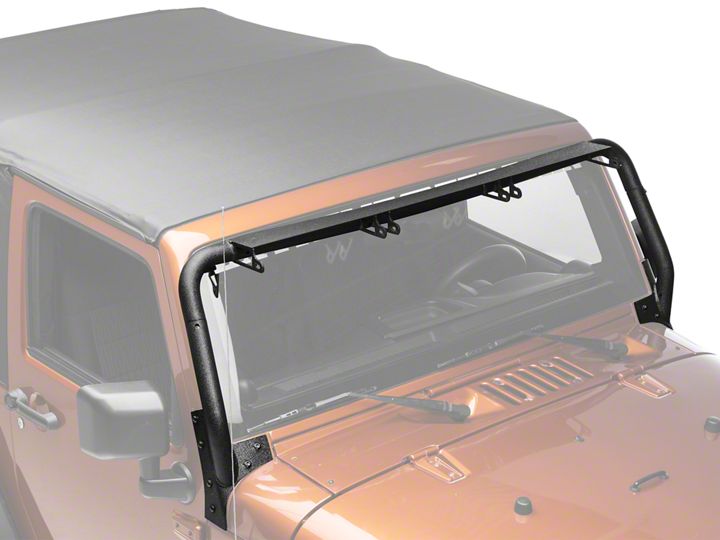

How to Install a Rugged Ridge Windshield LED Light Bar, Tubular on your Jeep Wrangler

Installation Time

1 hours

Extreme Terrain
Shop Parts in this Guide

1. Attach 13.5 inch LED bars to the crossbar. M8x16mm hex bolts with washer are supplied for mounting Rugged Ridge® LEDs. Use holes in front of crossbar and underside of LH bracket for routing wires.

NOTICE: If other manufacturers’ lights are used, additional hardware may be required.


2. Attach LH and RH brackets to crossbar with supplied M8 button head bolt and M8 lock nut. Do not tighten completely to allow for adjustment.


3. Remove the factory LH and RH brackets. Retain factory hardware for later use.


4. Install assembly to vehicle using factory hardware retained from Step 1. Adjust fitment if necessary and securely tighten all bolts.

CAUTION: Use of tape on the a-piillar, cowl, and fender is recommended to prevent damage to vehicle’s finish.

Two people are also recommended for this step: One on each side.
