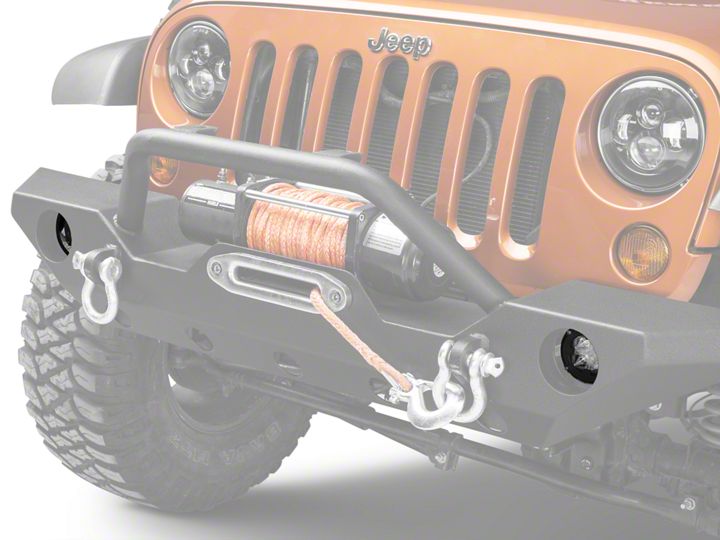

How to Install Rugged Ridge LED Light Mount Brackets - Circle on your Wrangler

Installation Time

30 minutes

Extreme Terrain
Shop Parts in this Guide

Contents:

1. LED Fog Light Bracket (2)
2. L-Bracket (2)
3. Hex Bolt (2)
4. Locknut (2)
5. Spacer (2)
6. Flat washer (4)
7. Tapping Screw (8)


NOTICE: LED Fog Light Brackets are compatible with most LED designs; however, we recommend using Rugged Ridge LEDs for best results.

NOTICE: Minor relocation of vacuum pump may be required for installation on 2012 and newer Jeep Wrangler vehicles.

1. Remove Bumper (Refer to the factory manual or Instructions for  your aftermarket Bumper)

2. Remove fog lights from bumper.


For use with Rugged Ridge LEDs

3. Mount LED to LED Fog Light Bracket using supplied hardware and Spacer.

4. Slide LED forward to set desired depth for bumper installation and tighten.

NOTICE: â€‹Spacer is required for mounting Rugged Ridge LEDs and may not be required with other brands. Use spacer as needed.


For use with non-Rugged Ridge LEDs

5. Mount LED to L-Bracket

6. Mount L-Bracket to LED Fog Light Bracket.

7. Adjust LED to desired position for bumper installation and  tighten.

NOTICE: â€‹Hardware orientation may be reversed for clearance  depending on bumper/ light combination.


8. Secure LED Fog Light Brackets to bumper using supplied Tapping Screws. Adjust LED projection angle and tighten.

9. Reinstall bumper.
