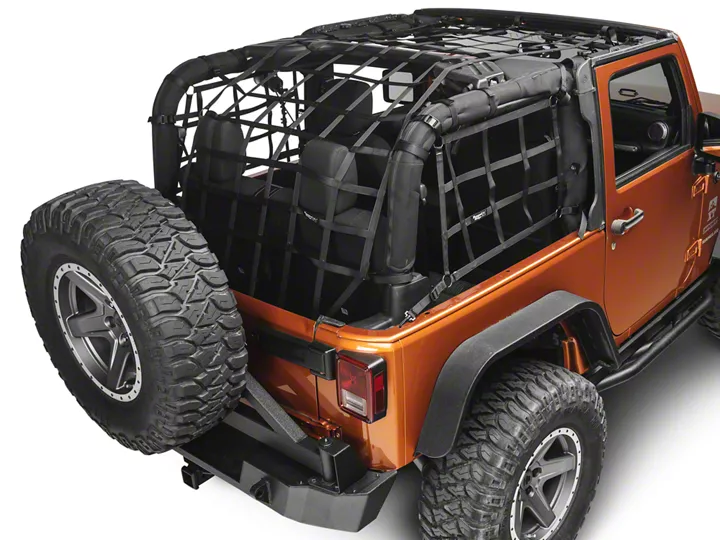

How to Install a Rugged Ridge Cargo Net, Black, 2-Door on your Jeep Wrangler

Installation Time

1 hours

Extreme Terrain
Shop Parts in this Guide

Components:

1. Top Net (1)

2. Side Nets (2)

3. Roll Bar Straps (12)

4. Short Straps (3)

5. Medium Straps (4)

6. Long Straps (2)

7. Footman Loops (4)

8. Sheet Metal Screws (8)

9. Plastic Spacers (8)

NOTE: Installation of Cargo Net System is easier when factory top has been completely removed.

1. Lower factory soft top, or remove factory hard top.

2. Install Roll Bar Straps around roll bars following guide below. Roll Bar Straps should go around top of roll bar, through plastic loops, and attach back onto them­selves using the hook and loop fasteners.



3. Install Top Net by inserting long portions of polyester straps through metal cam buckles on each Roll Bar Strap. Do not tighten. Try to keep net centered during installation.

NOTE: Top Net metal O-rings go towards front of ve­hicle.


4. Install three metal O-Rings on front part of Top Net to factory footman loops using Small Straps.

5. Once all straps have been attached, go around vehicle and tighten each strap evenly, keeping the Top Net as centered as possible.


6. Install Side Nets by attaching metal O-rings to roll bar using two Medium Straps and one Long Strap per side.


7. Attached rear plastic hook on Side Nets to rear-most hole in tub rail.


8. For 2007-2010 model years: lift carpet in cargo area in the rear-most corners. Use supplied foot­man loops and a marker to mark screw locations. Drill pilot holes at marked locations using a 9/64” drill bit. Attach supplied footman loop using Sheet Metal Screws placing plastic spacers between footman loop and sheet metal. Replace carpet, then cut carpet above footman loop using utility knife. Attach plastic hooks on rear part of Top Net to installed footman loops.

9. For 2011 model years: attach plastic hooks on rear part of Top Net to factory footman loops located in rear of cargo area.

10. Tighten all straps evenly keeping Nets centered in their correct positions. Wrap loose polyester strap back through metal cam buckles and back around Roll Bar Straps attaching polyester strap to hook and loop fastener.
