Rough Country Suspension 4-Inch Long Arm Suspension Lift Kit with V2 Monotube Shocks (97-06 Jeep Wrangler TJ, Excluding Unlimited)Find parts that fit my vehicle

Installation Info

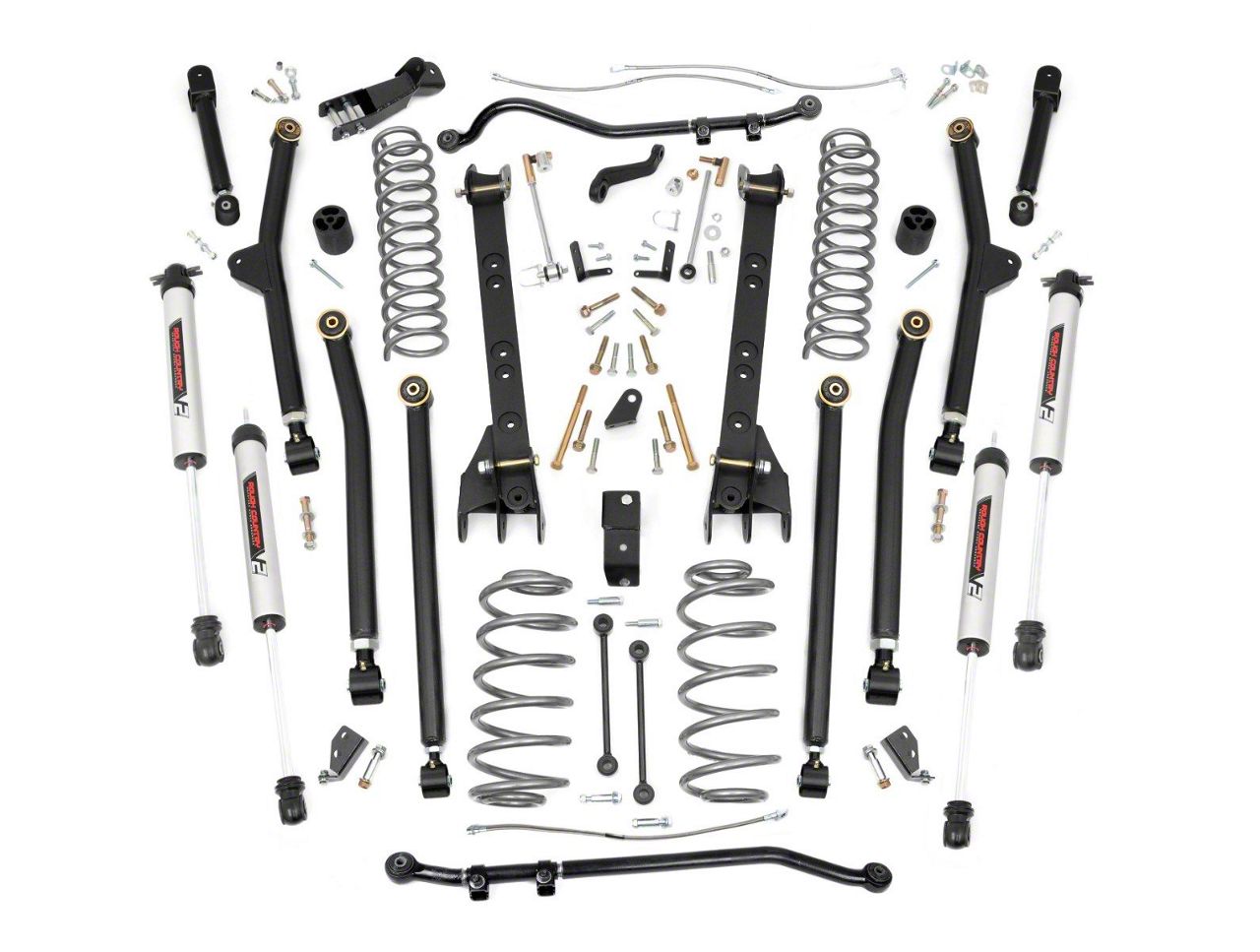

What's in the Box

• Coil Springs (Part of 1661C-4” KIT / 1662C-6” KIT)
  • Rt Coil Spring (A)
• 1052 Front Adjustable Track Rod Kit
  • 1 Track Rod Body (D)
  • 1 Track Bar Bracket (E)
  • 10589ag Front Track Rod Bracket Hardware:
    • 2 Frame Crush Sleeves
    • 1 Bolt 7/16” x 1 3/4”
    • 2 Bolts 1/2” x 4 1/2”
    • 7 Flat Washers 1/2”
    • 3 Lock Nuts 1/2”
  • Front Adjustable Track Rod Hardware:
    • 2 Bolts 7/16” x 2 3/4”
    • 4 Flat Washers 7/16”
    • 2 Lock Nuts 7/16”
    • 3 Jam Nuts 3/4”
    • 2 Track Bar Bushings
    • 1 Track Bar Sleeve (ID 7/16”)
    • 1 Heim Joint
    • 2 Heim Spacers
• 1075 Rear Adjustable Track Rod Kit
  • 1 Track Rod Body & Heim End (F)
  • 10868ag Rear Track Rod Hardware:
    • 1 Sleeve
    • 2 Bushings
    • 1 Jam Nut
    • 2 Heim Spacers
• 1663Box5 - Control Arm Mounts and Related
  • 1 Driver Side Control Arm Mount (G)
  • 1 Passenger Side Control Arm Mount (H)
  • 1 Rear Track Bar Bracket (I)
  • 1 Rubicon Compressor Bracket
  • 2 Front Upper Adjustable Arms (J)
• 1663Box6 - Front Lower and Arm Ends
  • 2 Front Lower Adjustable Arms (K)
  • 4 Large Arm Ends
  • 4 Small Arm Ends
• 16636ag1 - Bolts for Corner Arm Mounts and Skid Plate
  • 4 Bolts 1/2” x 4”
  • 8 Washers 1/2”
  • 4 Lock Nuts 1/2”
  • Transfer Case Skid Plate Bolts:
    • 6 Bolts 9/16” x 4 1/2” (09/02 models)
    • 6 Bolts 12mm x 65mm (03-06 models)
    • 6 Flat Washers
  • Front Lower Control Arms Hardware:
    • 2 Bolts 9/16” x 4”
    • 4 Flat Washers 9/16”
    • 2 Lock Nuts 9/16”
  • Front Upper Control Arms Hardware:
    • 2 Bolts 10mm x 80mm
    • 4 Flat Washers 10mm
    • 2 Lock Nuts 10mm
• 16638ag5 - Rear Lower Control Arm and Track Bar Bracket Hardware
  • 2 Bolts 9/16” x 7”
  • 4 Flat Washers 9/16”
  • 2 Lock Nuts 9/16”
  • Rear Track Bar Bracket:
    • 2 Bolts 5/16” x 1”
    • 4 Flat Washers 5/16”
    • 2 Lock Nuts 5/16”
    • 1 Bolt 12mm x 65mm
    • 1 Flange Lock Nut 12mm
    • 1 Crush Sleeve
  • Rubicon Compressor Bracket Hardware:
    • 4 Bolts 5/16” x 1”
    • 4 Lock Nuts 5/16”
    • 8 Flat Washers 5/16”
  • Additional Bags:
    • 4 Lower End Component Bag
    • 4 Upper End Component Bag
    • 1 Adjustable End Tool Bag
• 1663Box7 - Misc & Brackets
  • 1 Driver Side Front Mount Disconnect Bracket (L)
  • 1 Passenger Front Mount Disconnect Bracket (M)
  • 2 Front Sway Bar Links (N)
  • 2 Front Bump Stop Ducks (O)
  • 2 Front Stainless Brake Lines (P)
  • 1 Pitman Arm (Q)
  • 1 Rear Stainless Brake Line (R)
  • 2 Rear Track Sway Bar Links (S)
  • 2 Rear Shock Relocators (T)
  • 1 Hardware Bag (16639ag):
    • Front Bump Stop: 2 Bolts 5/8” x 3 1/2” Self Tapping
    • Brake Lines: 4 Brake Washers 3/8”, 2 Frame Brackets, 2 Brake Clips
    • Rear Brake Line: 1 Brake Clip, 1 Brake Line Clip
    • Rear Shock Bracket Hardware: 2 Bolts 12mm x 65mm, 2 Flange Lock Nuts 12mm, 2 Bolts 5/16” x 3/4”, 4 Flat Washers 5/16”, 2 Lock Nuts 5/16”, 2 Zinc Sleeves
    • Rear Sway Bar Hardware: 4 Sleeves 10mm ID, 4 Bolts 10mm x 60mm, 2 Lock Nuts 10mm, 2 Flat Washers 10mm
  • Sway Bar Disconnect Bag (For 4” Skyjacker disconnects):
    • 4 Bolts 1/4” x 4”
    • 4 Flat Washers 1/4”
    • 2 Bolts 3/8” x 1 1/4”
    • 2 Flat Washers 3/8”
    • 2 Front Disconnect Mounts
    • 2 Disconnect Pins
    • 2 Hitch Pins
    • 2 Rod Ends
    • 2 Nuts 1/2”
    • 2 Flat Washers 1/2”
    • 2 Flange Lock Nuts 1/2”
    • 3 Jam Nuts 1/2”
• 1663Box4 - Rear Control Arms
  • 2 Rear Lower Adjustable Arms (U)
  • 2 Rear Upper Adjustable Arms (V)
• 66130Box - Shocks
  • 2 Front Shocks (W)
  • 2 Rear Shocks (X)
