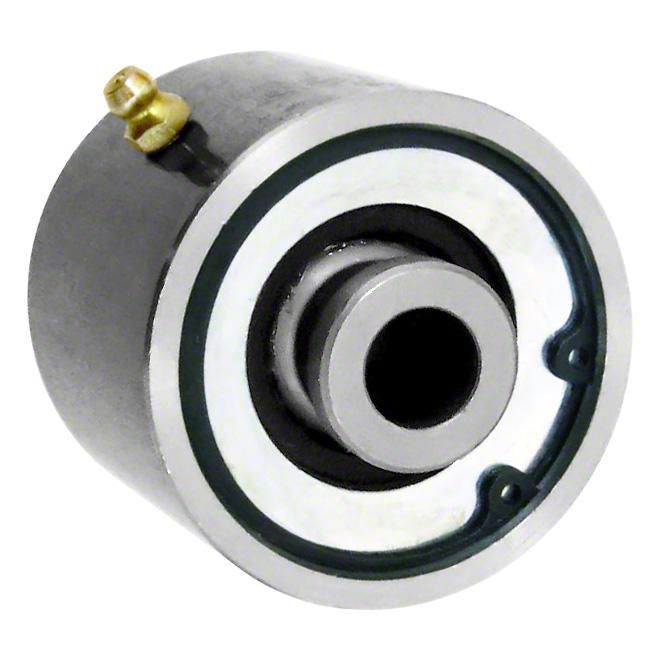

RockJock Johnny Joint Weld-On Narrow Tie Rod End; Axle Side (21-26 Bronco)Find parts that fit my vehicle
Item FB25347
Our Price
$67.00
Military, Medical & First Responders
$3.35 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- RockJock’S Johnny Joint Rod Ends Have Been A Staple In The Off Road Industry Since 1996
- Available Universally For Builders Or Found In RockJock Suspension Components
- Reliable, Greasable, Rebuildable Joint
- Capable Of Dramatic Articulation In Off-Road Applications
- Provides Smooth, Cushioned, Quiet Performance During On-Road Use
- Forged Rod End With Various Right-Hand And Left-Hand Thread Sizes From 3/4 In. Up To 1 1/2 In. Thread
- Weld-On Versions Available For Fabricators
- Specialty Joints Such As Polished Stainless Steel, Long Body, Bent Forgings And Application Specific Machined Joints Available
- Standard Or Narrow Width Joint Body Options
- Articulation Range Up To 30 Plus Degrees On Standard Body
- Articulation Range Up To 40 Plus Degrees On Narrow Body
- Narrow Body Has One-Piece Bushing For Slightly Firmer Ride
- 2 1/2 In. Weld-On, Narrow Width Steel Outer Barrel
- 70mm Overall Width X 16mm Thru-Bolt Hole Pivot Ball
- External Greasing Via Included 1/4 In.-28 Zerk Fitting
- Ships Disassembled, Ready For Welding
- 32 Degrees Of Articulation Capability
- 2 1/2 In. Outer Diameter X 1.69 In. Wide Barrel Dimensions
- One-Piece Bushing Internals
- Requires Non-Synthetic, Hi-Moly Lube Grease
- Fits 21-25 Bronco
Description
Premium Off-Road Rod End. The RockJock Johnny Joint Weld-On Narrow Tie Rod End; Axle Side offers rugged performance for extreme off-road use. Designed with rebuildable and greasable features, it delivers exceptional articulation while maintaining quiet, cushioned operation on-road. This makes it a vital component for suspension systems demanding durability and flexibility.
Construction and Appearance. Constructed from weldable steel with a narrow-width outer barrel, this rod end includes a 70mm by 16mm pivot ball and one-piece bushing internals. It ships disassembled for ease of installation and features a corrosion-resistant finish, ensuring long-lasting reliability in demanding environments.
Installation. Installation requires welding, so a moderate skill level is recommended; no additional drilling is necessary. The component is designed to fit precisely where specified, streamlining the setup process for fabricators and builders.
Application. Engineered to fit 21-25 Bronco R upper or lower control arm axle ends, this rod end provides a direct fit and optimal performance without modification for this specific vehicle range.
RockJock RJ-331002-101
