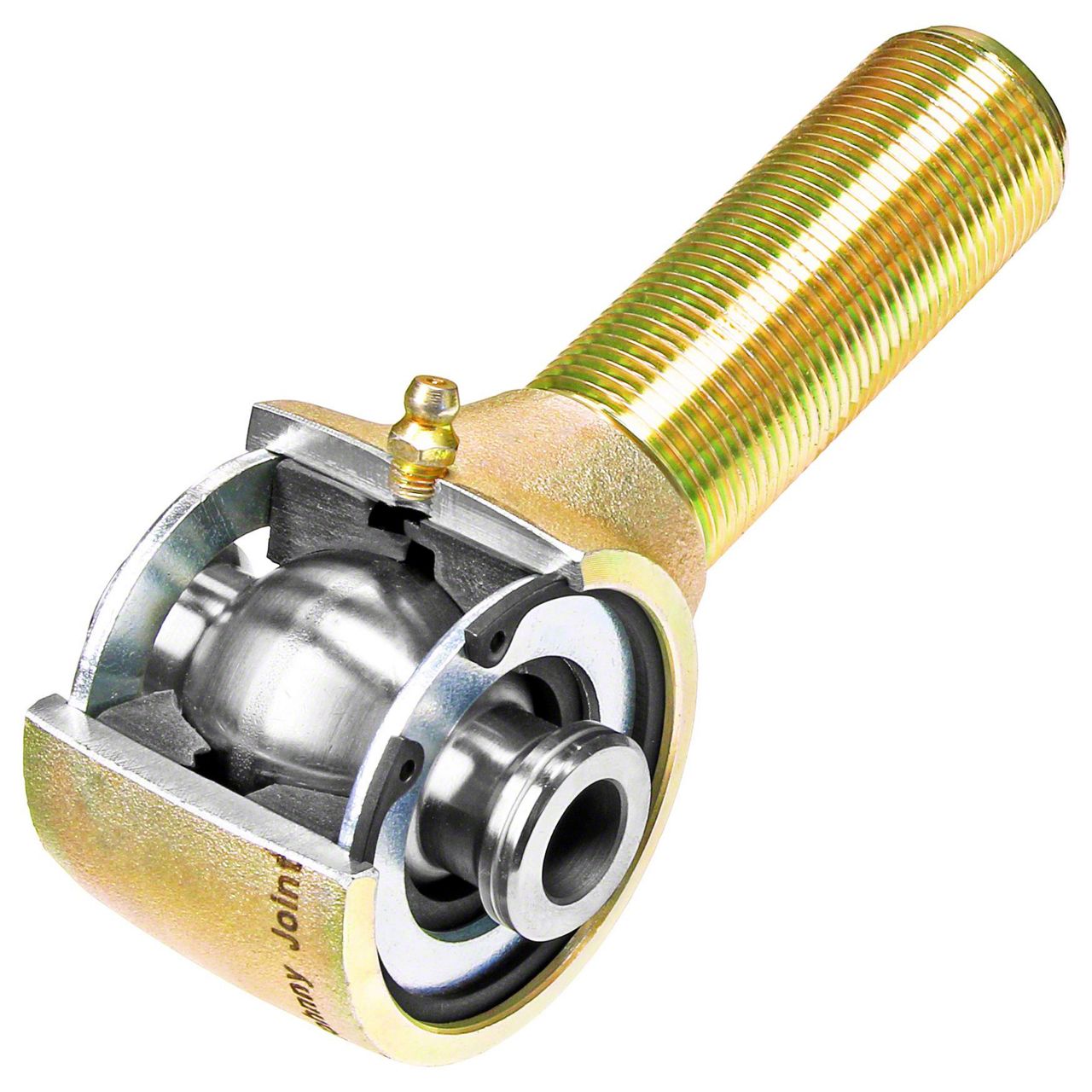

RockJock Johnny Joint Forged Tie Rod End; 1-1/4-Inch 12 LH Thread; Frame Side (21-26 Bronco)Find parts that fit my vehicle
Item FB25341
Our Price
$72.00
Military, Medical & First Responders
$3.60 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Forged Rod End With 1 1/4 In.-12 Left-Hand Thread
- Standard Width Joint Body With 34 Degrees Of Articulation Capability
- 74mm Wide By 16mm Thru-Bolt Hole Pivot Ball
- 2 1/2 In. Outer Diameter By 2 In. Wide Joint Outer Barrel
- Two-Piece Bushing Internal Design
- External Greasing Via 1/4 In.-28 Zerk Fitting
- Fully Assembled And Ready For Use Right Out Of The Box
- Approximately 4.94 Inches From Centerline Of Joint To End Of Threads
- 3.25 Inches Of Thread Length
- Requires Non-Synthetic, Hi-Moly Grease For Lubrication
- Fits 21-25 Bronco For R Upper Or Lower Control Arm Frame End
Description
Durable Off Road Joint. The RockJock Johnny Joint Forged Tie Rod End; 1-1/4-Inch 12 LH Thread; Frame Side serves as a reliable, rebuildable rod end designed for high articulation in off-road suspension systems, providing smooth and quiet operation on the road. Its greasable design ensures longevity and ease of maintenance in demanding conditions.
Construction and Appearance. Crafted from forged steel, this rod end features a standard width body with a robust 2 1/2 inch outer diameter barrel and a high-strength 74mm by 16mm pivot ball. The component includes a two-piece bushing internal assembly and an externally mounted zerk fitting for efficient greasing, all finished to withstand rigorous off-road environments.
Installation. Installation is straightforward with no drilling required, designed to replace or integrate into existing suspension components with ease. It is suitable for professional users familiar with suspension assembly and adjustment.
Application. Specifically engineered to fit the 2021-2025 Bronco models on the right upper or lower control arm frame ends, ensuring proper fit and function for these vehicles.
RockJock RJ-330401-101
