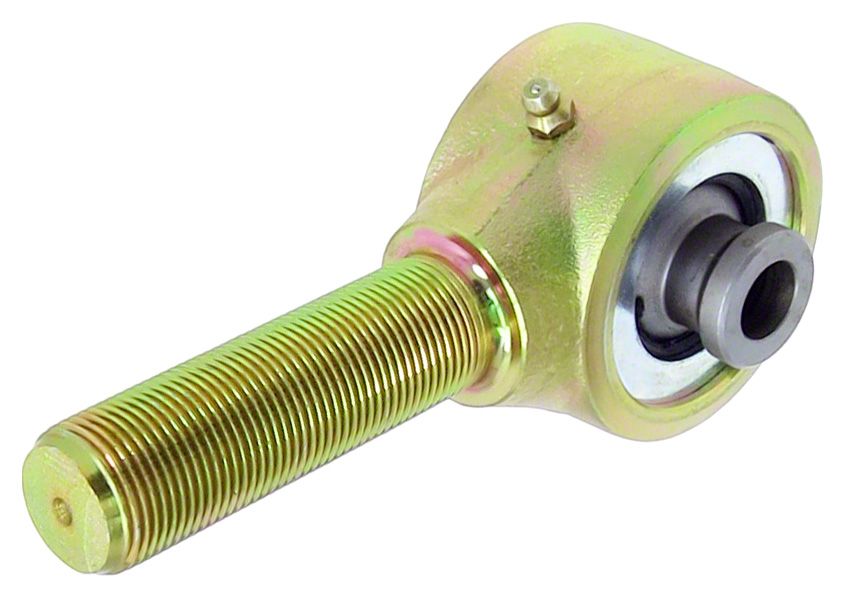

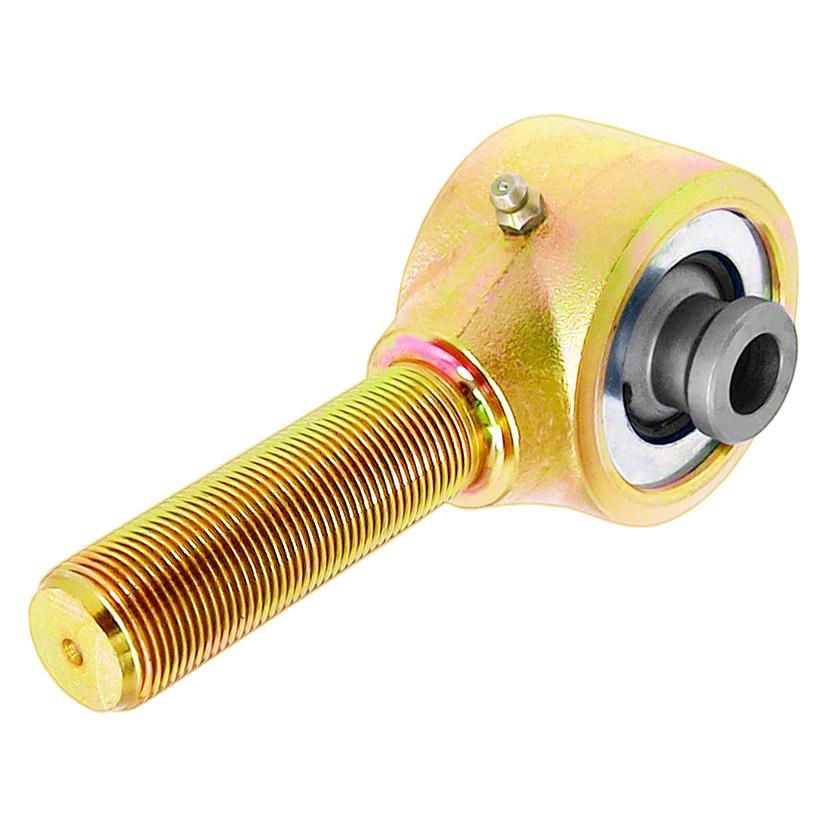

RockJock Johnny Joint Forged Narrow Tie Rod End; 1-Inch 14 LH Thread; Trac Bar Side (21-26 Bronco)Find parts that fit my vehicle
Item FB25338
Our Price
$72.00
Military, Medical & First Responders
$3.60 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- RockJock's Johnny Joint Rod Ends Have Been A Staple In The Off Road Industry Since 1996
- Universal Application For Builders Or Suspension Components
- Proven Formula Provides Reliable, Greasable, Rebuildable Joint
- Capable Of Dramatic Articulation In Off-Road Applications
- Smooth, Cushioned, Quiet Performance During On-Road Use
- Forged Rod End With Various RH And LH Thread Sizes From 3/4 In. Up To 1 1/2 In.
- Weld-On Versions Available For Fabricators
- Specialty Joints Include Polished Stainless Steel, Long Body, Bent Forgings, Application Specific Machined Joints
- Standard Or Narrow Width Joint Body Available
- Standard Body Provides 30+ Degrees Of Articulation
- Narrow Body Provides Up To 40+ Degrees Of Articulation And Slightly Firmer Ride
- 2 1/2 In. Joint Incorporates 1 In.-14 LH Thread, Narrow Width, Forged Body
- 55mm Overall Width X 16mm Thru-Bolt Hole Pivot Ball
- External Greasing Via 1/4 In.-28 Zerk Fitting
- Includes (1) Forged Johnny Joint Assembly
- 34 Degrees Of Articulation Capability
- Forged Steel Construction
- 2 1/2 In. Outer Diameter X 1.69 In. Wide Joint Outer Barrel
- 3.250 Inches Of 1 In.-14 LH Threads
- 4.94 Inches From Centerline Of Joint To End Of Threads
- 1-Piece Bushing Internals
- 55mm Wide X 16mm Thru-Hole Pivot Ball
- Zerk Fitting For Greasing
- Fully Assembled, Ready For Use Right Out Of The Box
- Requires Non-Synthetic, Hi-Moly Lube Grease
- Use Only Hand Pump Grease Guns For Lubrication; Over Greasing Can Cause Damage
- Fits 21-25 Bronco R Trac Bar Either End
Description
High-Performance Tie Rod End. The RockJock Johnny Joint Forged Narrow Tie Rod End; 1-Inch 14 LH Thread; Trac Bar Side provides robust articulation and durability essential for off-road driving while ensuring smooth and quiet performance on-road. Designed for trac bar applications, this rod end offers precise movement and reliable connection under harsh conditions.
Construction and Appearance. Crafted from forged steel, this rod end features a narrow-width body with a 55mm-wide pivot ball and a 16mm thru-bolt hole. It includes a one-piece bushing for enhanced articulation and a 1/4 in.-28 zerk fitting for external greasing. The finish is engineered for durability and ready for immediate installation.
Installation. Installation is straightforward with no drilling required, designed to replace factory components easily. This rod end fits directly into existing trac bar setups, making it suitable for professional DIY installations.
Application. Specifically engineered to fit 21-25 Bronco models on the R trac bar, either end. It is essential for performance upgrades requiring improved articulation and joint longevity.
