Rock Krawler 4.50-Inch X-Factor X2 Flat Belly Long Arm Suspension Lift Kit (97-06 Jeep Wrangler TJ, Excluding Unlimited)Find parts that fit my vehicle
Item J251128
Our Price
$4,496.65
Military, Medical & First Responders
$224.83 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Maintenance-Free High Ability Control Arms Featuring Award-Winning Adventure Series Joints
- Full Flat-Belly Long-Arm System
- Excellent Cross Over Angle Long-Arm System
- Optimized On Road and Off Road Long-Arm Geometry
- Excellent Highway Ride and Handling
- High Misalignment Lower Control Arms
- Tuned Triple-Rate Coil Springs Front and Rear
- Independent Front 3 Link Geometry
- Double Triangulated Rear 4 Link Geometry
- Pro Front Sway Bar Disconnects
- Upgradeable To Coilover Stretch Systems or Rockzilla
- Lifetime Warranty Coverage on Hard Parts

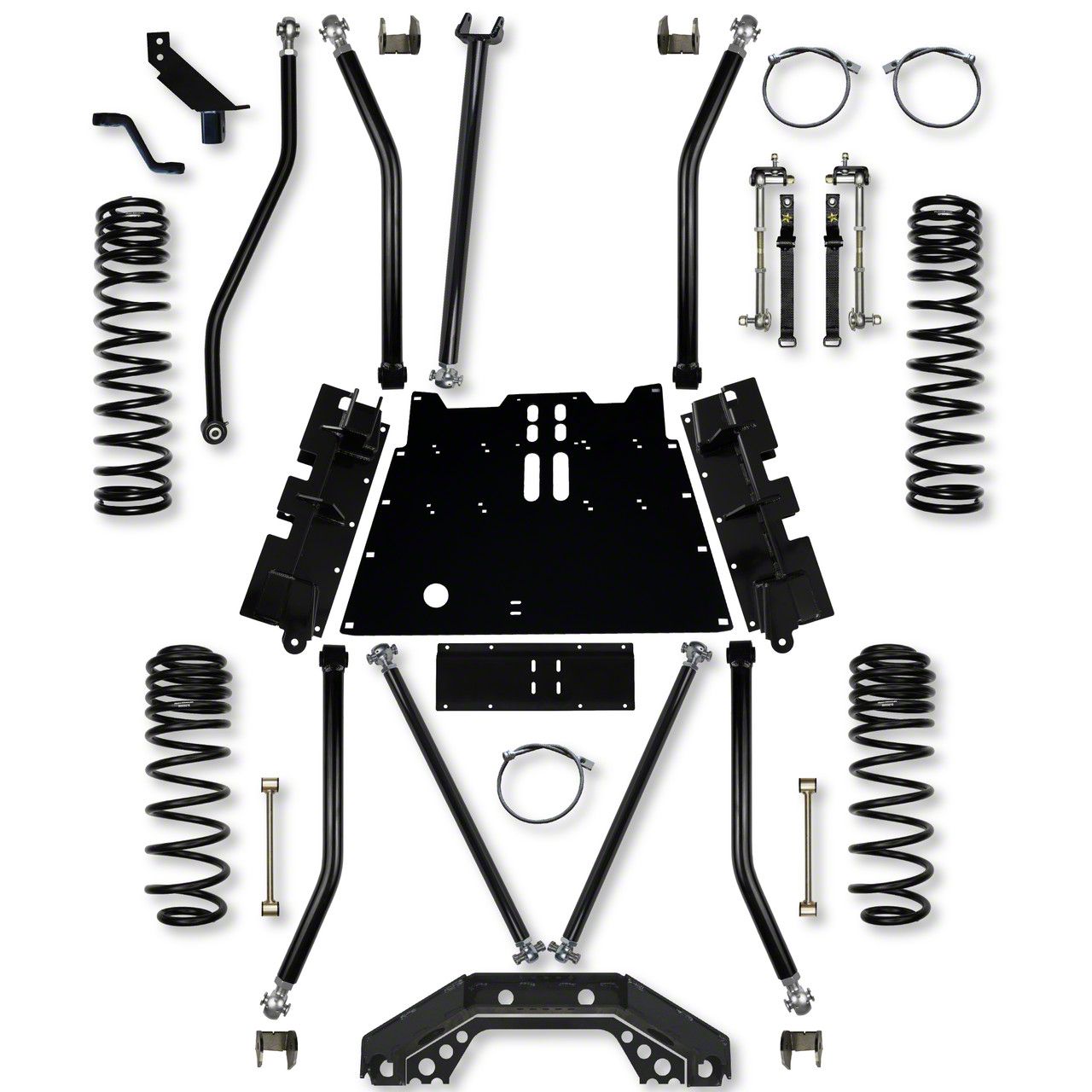

- System Includes Triple-Rate Coil Springs, High Misalignment and Adjustable Lower Control Arms, Adjustable Front Upper Control Arm, Adjustable Front Track Bar, Front Adjustable Sway Bar Disconnects, Front Sway Bar Link Straps, Skid Plate and Mounting Brackets, Rear Upper Triangulated 4 Link Arms, Rear Triangulated 4 Link Mounting Cradle, Axle Truss, Extended Stainless Steel Brake Lines, Rear Sway Bar Links, Front Track Bar Relocation Bracket, Drop Pitman Arm, Lower Control Arm Axle Mounts
- Bumpstops Included With All Shock Options or Available Separately If No Shocks Chosen
- All Shocks and Coilovers Designed and Built In-House With Specified Collapsed and Maximum Extended Lengths
- Bilstein 5100 Shocks Maintenance Free Front and Rear Part Numbers Included
- Typical Wheel Fitment For 12.5 Inch Wide Tire On 8 To 9 Inch Wide Wheel With 3.75 Inch Or Less Backspacing For Stock Axle Applications
- Highly Recommended Antirock Rear Sway Bar
- Designed For OEM Axles and OEM Axle Control Arm Mounting Widths Dana 30/44
- Use With Axles That Achieve OEM Lower Control Arm Mounting Widths or Require Customized Lower Control Arm Bend Profiles
- Requires SYE with C.V. Driveshaft
- Long Rear Uppers Require Custom Cat-Back Exhaust
- Rubicon Edition TJs Require New Rear Driveshaft
- 2003 TJs With 4-Speed Automatics Require Removal Of Factory Transmission Skid Plate For Proper Driveshaft Travel
- Requires Removal Of OEM Rear Upper Control Arm Mounts From Rear Axle
- Recommend Rear Shock Relocation Brackets or Shock Shifters For Some Applications
- Requires Artec or Motobilt HD Body Mounts That Raise Body 1.25 Inches and Small Motor Mount Lift or 1.5 Inches Body Lift/Motor Mount Lift or Greater
- Combine Suspension Lift Height and Body Lift Height or Body Mount Replacement To Achieve Total Lift Height For Desired Tire Clearance
- Fits 1997-2006 Jeep Wrangler TJ, Excluding Unlimited
| Brand | Rock Krawler |
| Lift Height | 4.50 Inch |
| Lift Kit Type | Coil Spring Lift |
| Lift Kit Max Tire Size | 31 Inch |
| Brand of Shocks | Rock Krawler |
| Rear Lift Type | Coil Spring |
| Shock Type | No Shock |
Description
Advanced Suspension Technology. The Rock Krawler 4.50-Inch X-Factor X2 Flat Belly Long Arm Suspension Lift Kit greatly improves the suspension setup of Jeep Wrangler TJs by delivering superior geometry and ride quality. Designed for off-road enthusiasts demanding durability and performance, it provides exceptional control and increased clearance suitable for challenging terrain.
Construction and Appearance. Built with high-quality materials, this suspension system features maintenance-free control arms equipped with advanced Adventure Series joints and tuned triple-rate coil springs on both front and rear. The innovative full flat belly design tucks the arms within the frame, enhancing protection from trail impacts while maintaining a streamlined appearance.
Installation. Installation requires moderate mechanical skill and involves removing factory components and performing specific vehicle adjustments such as custom exhaust or driveshaft modifications where applicable. Some applications require removal of factory transmission skid plates or OEM rear upper control arm mounts to ensure proper fit and function. No drilling is generally required, but specific suspension and bracket work is necessary for proper installation.
Warranty. All hard parts in this suspension system are backed by an abuse-proof lifetime warranty, reflecting their durable construction and reliability for long-term use.
Application. This suspension kit is specifically designed to fit 1997–2006 Jeep Wrangler TJ models, excluding the Unlimited versions. It is compatible with OEM axles and axle control arm mounting widths (Dana 30/44). Certain models, like Rubicon editions and automatic transmissions, require specific modifications such as new rear driveshafts or skid plate removal to maintain optimal performance and fitment.
Rock Krawler TJ45X2LA
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
4.7
Reviews of Rock Krawler Suspension Products (53)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Wrangler
- TJ Rubicon 2 Door - 03, 04, 05, 06
- TJ Wrangler 2 Door - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06
