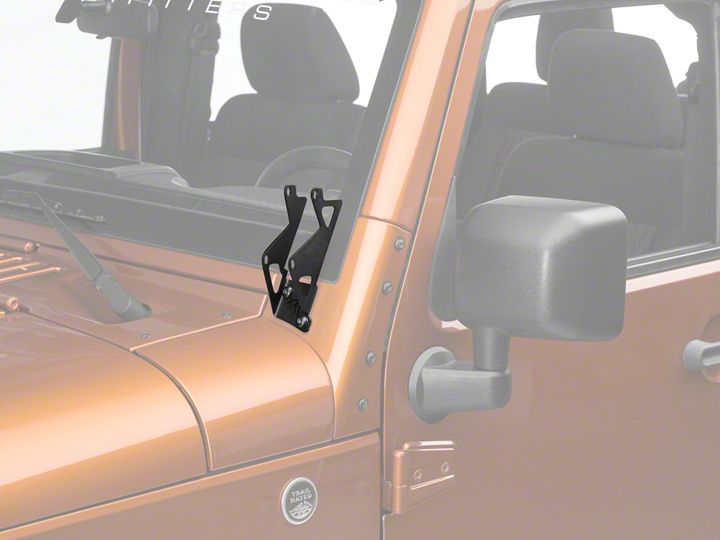

How to Install Rigid Industries Dual D-Series A-Pillar Light Mount Kit on your Jeep Wrangler

Installation Time

15 minutes

View PDF Guide

PARTS INCLUDED

(2) Mounting Brackets (Left, Right) #40331 or #40335
(4) M8x125x25mm Black Zinc Cap Screws
(2) Spacers

INSTALLATION INSTRUCTIONS

Thank you for purchasing Rigid Industries' products for your Jeep. Installation is fairly simple with the right tools and good mechanical abilities. If you are not confident in your mechanical skills, please seek the help of a professional to perform the installation. Please read through all of these instructions and tips before proceeding with installation.

STEP 1: Remove factory hardware.

STEP 2: Align spacer with factory holes.

STEP 3: Align bracket on spacer.

STEP 4:   Install supplied M8 screws finger-tight. Adjust bracket, then finish tightening.

STEP 5:   Install D-Series(s) on bracket finger-tight. Adjust D-Series(s), then finish tightening.

STEP 6:   Wire your light(s) according to your D-Series wiring instructions.
