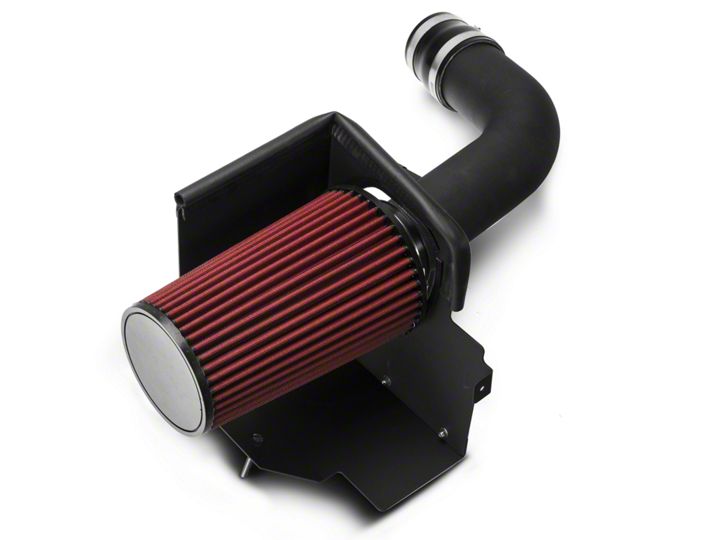

How to Install a RedRock 4x4 Cold Air Intake Kit on your 2007-2011 Jeep Wrangler JK

Installation Time

2 hours

Tools Required
  • 10mm socket
  • 8mm socket
  • Flathead Screwdriver
  • Allen Key Set
Extreme Terrain
Shop Parts in this Guide

Step 1:

Unplug your factory IAT sensor located on the side of the intake tube.


Step 2:

Slide the PCV hose off of the factory air hose.


Step 3:

Using a flathead screwdriver, remove the hose clamp holding the intake tube to the throttle body.


Step 4:

Pull the entire intake assembly up and away from the vehicle.


Step 5:

Remove your factory IAT sensor from the factory intake tube.


Step 6:

Install the IAT sensor into the new intake tube assembly.


Step 7:

Using the (6) supplied nuts and screws, assemble the new hear shield as shown


Step 8:

Remove the 8mm screw holding the fan shroud to the radiator.


Step 9:

Install the heat shield using the factory mounting positions and secure with bolts.


Step 10:

Add the supplied rubber gaskets to the top of the heat shield and in hole for the intake.


Step 11:

Install the intake tube onto the coupler and onto the factory throttle body.


Step 12:

Secure the intake tube to the heat shield using the supplied spacer.


Step 13:

Reinstall the factory PCV hose onto the new intake tube and secure with new clamp.


Step 14:

Plug in the IAT sensor that you previously installed into the intake tube.


Step 15:

Install the filter and tighten down using the supplied hose clamp.
