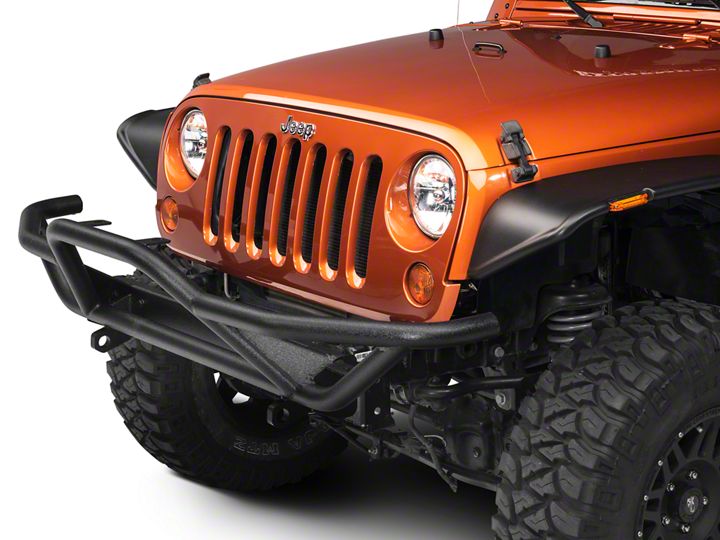

How to Install a RedRock 4x4 Rock Crawler Front Grille Guard on your 2007-2017 Jeep Wrangler JK

Installation Time

2 hours

Tools Required
  • 18mm wrench
  • 19mm socket
  • socket extension
  • socket wrench
Extreme Terrain
Shop Parts in this Guide

Contents:

(1) - Bumper
(8) - Bolts
(8) - Lock Nuts
(16) - Washers
(4) - Bolts


It is recommended that you have an additional person available to help during this installation, parts can be awkward to hold and support by yourself. Block wheels and set parking brake before beginning work.


Remove the 4 front and 2 rear, plastic push pin, splash shield retainers. Remove splash shield from the vehicle.


Remove the 4 nuts on the backside of the bumper that attach the front bumper to the frame.


Place the new bumper over the front of the vehicle frame and insert the 4 inner bolts into the holes from the front. Attach a lock nut to the back and tighten them.


Insert the 4 outer bolts into the holes from the front. Attach a lock nut to the back and tighten them. Secure any fog light wiring out of sight and away from moving parts.
