How To Install Recon Smoked Side Marker Lights With Amber Leds on your 2007-2016 Jeep Wrangler JK
Installation Time
1 hours
Tools Required
- Needle Nose Plyers
- Wire Cutter
- 4 Butt Wire Connectors
- Electrical Tap (optional)
Shop Parts in this Guide
Installation Instructions:
1. Twist and disconnect the factory wiring from the stock side marker.
2. Remove factory light by removing fender plug and sliding out. This will take some maneuvering to fully remove.
3. Before installing new Recon lights, strip wires and attach one end of the butt connectors.
4. Next, carefully slide new Recon lights into place and ensure clips are in place and wires are not damaged. Once in place, remove factory connector, strip the wires and and connect to the opposite ends of the butt connectors attached to the Recon lights you put in place.

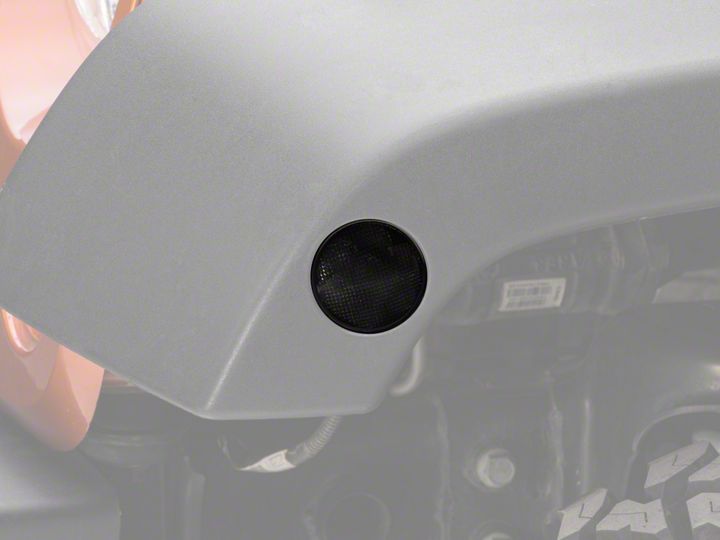

5. Lastly, turn on your lights/blinkers to test the connections. Lights should come on and look like this:
Installation Instructions Written by ExtremeTerrain Customer JeepModReview 05/14/2016
