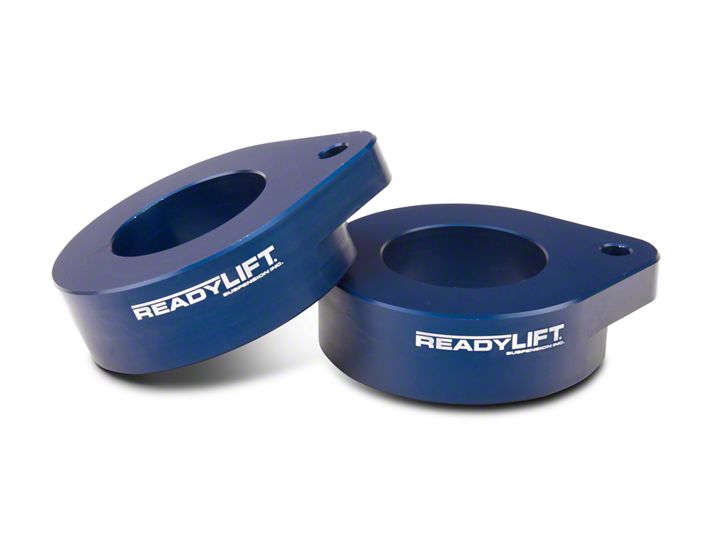

How to Install ReadyLIFT 1.5 in. Billet Aluminum Leveling Kit - Anodized Blue on your 07-18 Jeep Wrangler JK; 2018 Jeep Wrangler JL

Installation Time

1 hours

Extreme Terrain
Shop Parts in this Guide

Securely raise vehicle off ground and remove (4)wheels


Support front axle and remove upper trac bar bolt.


Loosen (2) front transfer case skid plate bolts.


Disconnect dr./pass. lower front swaybar end links


Disconnect and remove front lower shock hardware.


Carefully lower front axle enough to remove front spring


Assemble the desired amount of lift (1.0”, 1.5”, 2.0”) based on the vehicle’s stance.
Note: Config. C requires installation of (4) countersink assembly bolts.


Remove the upper spring isolator to expose mounting hole

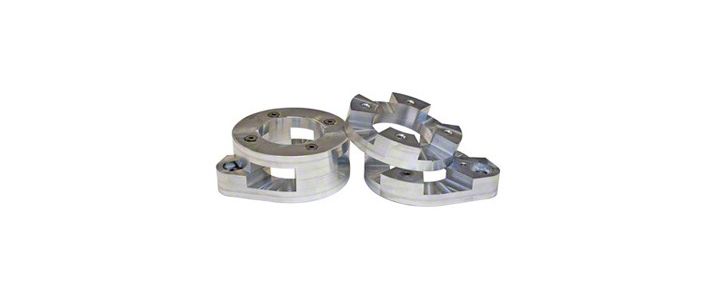

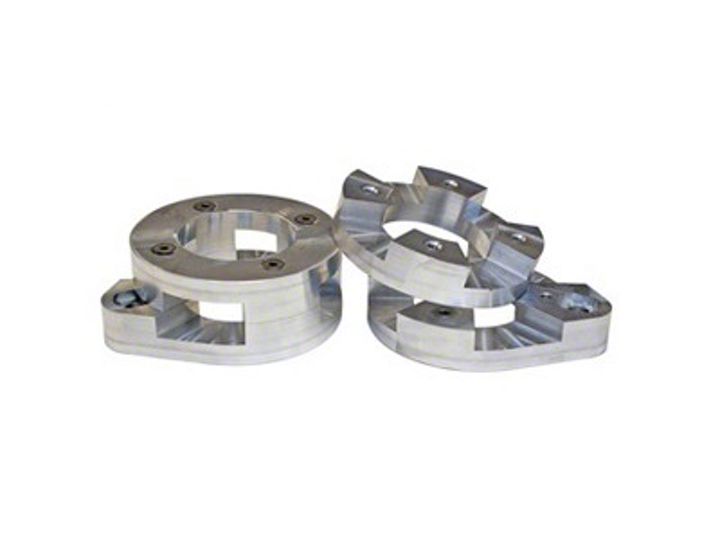

T6-6091 & T6-6092 spring spacer kit w/mounting hardware


Attach spring spacer kit with provided hardware


Tighten bolt and reinstall rubber isolator as shown


Reinstall coil spring in vehicle and raise axle


Reattach lower shock mount and tighten


Reconnect lower swaybar endlinks and trac bar bolt


Tighten transfer case skid plate bolts, reinstall wheels
