How to Install Raxiom Windshield Mounted Light Brackets (07-17 Wrangler JK) on your Jeep Wrangler

Installation Time

30 minutes

Extreme Terrain
Shop Parts in this Guide

1. Remove two factory bolts on the front side of the A-Pillar. See Figure 1.

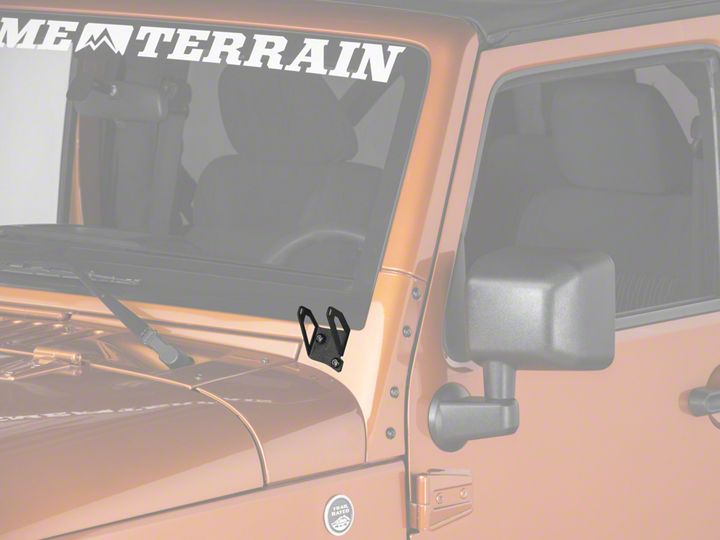

2. Position the passenger side windshield light bracket pre-drilled holes over the holes left from removing the torx screws. They should line up exactly.

3. The foam pad backing on the light bracket will protect the finish of your Jeep, so it must remain on product during installation.

4. Replace the factory bolts into the factory holes using a T40 torx driver or socket with an extension.

5. Repeat the procedure for the driver side.

6. The auxiliary lighting can now be bolted onto the light bracket, adjust angle of light as needed. And the wires run under the hood to complete the lighting installation.
