How to Install Raxiom 6 LED Headlight replacement with partial Halo (97-17 Wrangler TJ & JK) on your Jeep Wrangler

Shop Parts in this Guide

1. Open hood and remove the 6 push pin clips across the top of the grille and remove them with a flat head screwdriver.

2. Unsnap grille, unplug turn signals that are located in the grille, and remove grille.

3. Remove the (4) T-15 Torx screws from the ring that is holding each headlight in the vehicle.

4. Unplug and remove the headlight.

5. For 1997-2006 Jeep Wranglers continue to step 7.

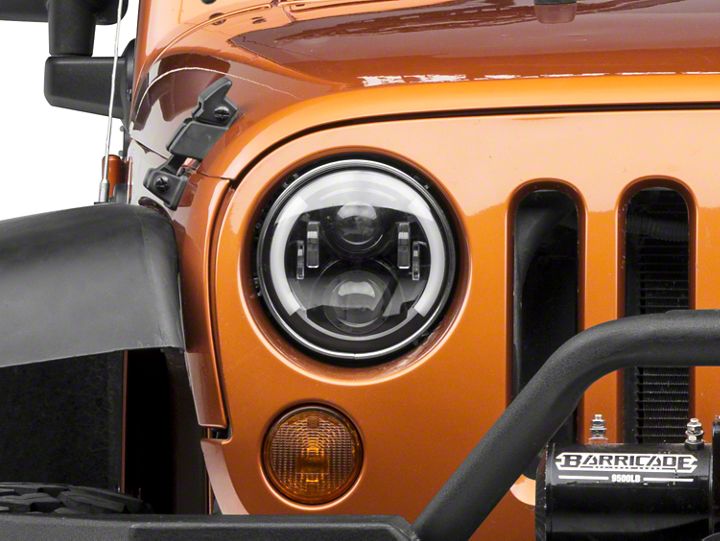

6 - LED Headlight 1997-2017 J108063 For 2007 to current Jeep Wranglers, the included H4 adapter and Canbus decoder are needed to complete install. 6. Plug in the new Raxiom headlight, and secure it in place with the previously removed ring and T-15 Torx screws.

7. Repeat previous steps to install the other headlight.

8. Turn on headlights and make sure they are aimed properly so not to blind oncoming traffic.

9. Reinstall grille by plugging turn signals back in and snap grille back into place.

10. Reattach the 6 push pin clips across the top of the grille to complete install.
