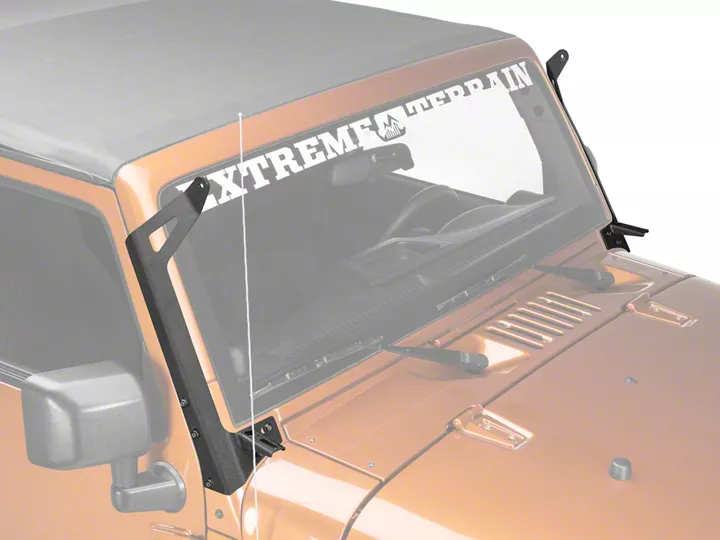

How to Install Raxiom 50 in. LED Light Bar Windshield Mount w/ Auxilliary Bracket (07-18 Jeep Wrangler JK) on your Jeep Wrangler

Installation Time

60 minutes

Tools Required
  • Box Cutter/Knife
  • 40 Torx Bit
  • 5mm Allen Wrench
Extreme Terrain
Shop Parts in this Guide

Installation Instructions:


1. Carefully open the package using a box cutter or knife (Figure A) and ensure both light bar brackets and the foam pads/hardware are included and undamaged.


Figure A

2. On the driver's side, use a 40 torx bit to remove the two bolts beneath the windshield (do not discard) (Figure B).


Figure B

3. On the driver's side, use a 40 torx bit to remove the top three bolts along the A-pillar (do not discard) (Figure C).


Figure C

4. Place the bracket facing inside up (Figure D). Remove the lining from the adhesive side of the foam pad and place the foam pad on the interior of the corresponding bracket (side-specific) (Figure E).


Figure D

Figure E

5. On the driver's side, mount the bracket (with the top facing inward) by using three of the supplied bolts along the A-pillar using a 5mm Allen wrench (Figure F).


Figure F

6. On the driver's side, mount the bracket by using two of the supplied bolts beneath the windshield using a 5mm Allen wrench (Figure G).


Figure G

7. On the passenger's side, follow steps 2-6, ensuring that the top of the bracket on the passenger side is also slanted inward toward the center of the vehicle (Figure H).


Figure H

Before

After

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 10/25/2017
