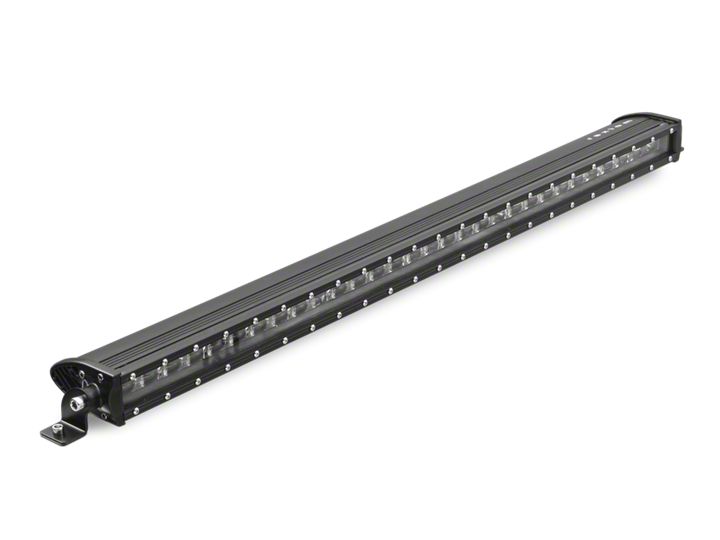

How to Install Raxiom 32 in. Super Slim Dual Row LED Light Bar on your Jeep Wrangler
Installation Time
60 minutes
Tools Required
- Box Cutter/Knife
- 10mm Socket
- Socket Wrench
- Light Wiring Harness
1. Connect the negative wire of the wiring harness (not supplied) to the negative battery terminal (Figure A).
Figure A
2. Connect the positive wire of the wiring harness (not supplied) to the positive battery terminal (Figure B).
Figure B
3. Thread a split-washer onto each supplied bolt (Figure C).
Figure C
4. Thread the bolt with the split-washer into the light mount (provided) (Figure D).
Figure D
5. Repeat Step 4 on the other side (Figure E).
Figure E
6. Tighten using the supplied Allen wrench (Figure F).
Figure F
7. Locate the wires at the end of the LED (Figure G).
Figure G
8. Insert and tighten into a connector (Figure H).
Figure H
9. Connect the LED to the light wiring harness (Figure I).
Figure I
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 08/30/2018
