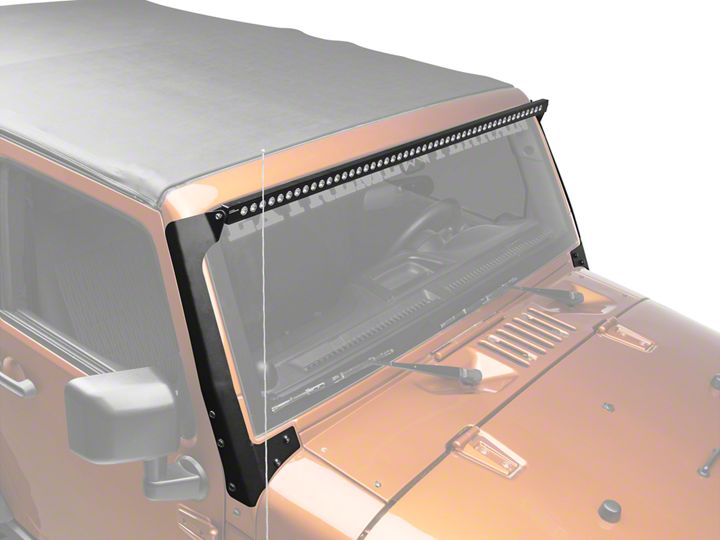

How to Install Putco 50 in. Luminix LED Light Bar w/ Roof Mounting Brackets on your Wrangler

View PDF Guide
Extreme Terrain
Shop Parts in this Guide

Bracket Installation

1. Remove bracket kit from packaging. Check to see if all parts from above kit contents table are included.

2. Remove Bolts shown if Figure 1 and set aside for both driver and passenger sides. Use T40 Torx Bit to remove.

3. Place rubber spacers under driver and passenger bracket and install using factory hardware. Tighten Down Using T40 Torx Bit. Driver and passenger brackets are shown in Figure 2.

4. Mount light bar between brackets. Tighten with 7/16" wrench (These brackets are designed for a Putco 10050 or 10055 Light Bar)

5. See Light Bar Installation Instructions for wiring installation.
