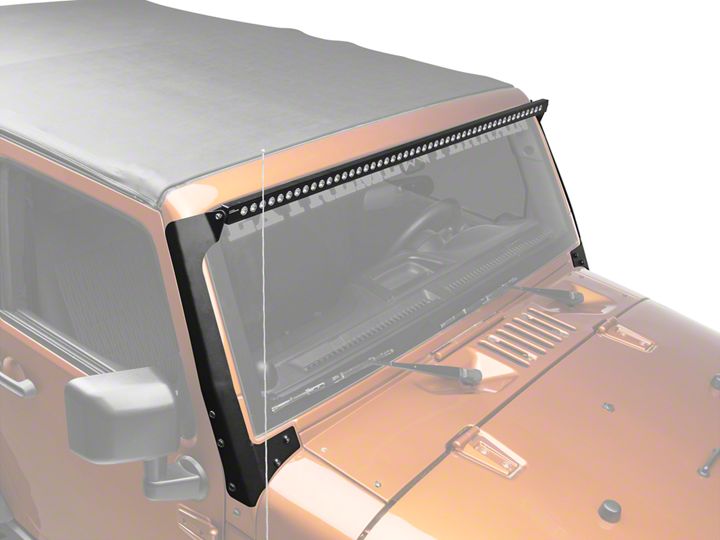

How to Install Putco 50 in. Luminix LED Light Bar w/ Windshield Mounting Brackets (07-17 Wrangler JK) on your Jeep Wrangler

Installation Time

1 hours

Tools Required
  • T 40 Torx Bit
  • Ratchet
  • 7/16" Wrench
View PDF Guide
Extreme Terrain
Shop Parts in this Guide

Please read all instructions before installation and to verify that all parts are included.

Kit For Putco 10050 or 10055 Light Bars Only


Bracket Installation

1. Remove bracket kit from packaging. Check to see if all parts from above kit contents table are included.

2. Remove Bolts shown if Figure 1 and set aside for both driver and passenger sides. Use T40 Torx Bit to remove.

3. Place rubber spacers under driver and passenger bracket and install using factory hardware. Tighten Down Using T40 Torx Bit. Driver and passenger brackets are shown in Figure 2.

4. Mount light bar between brackets. Tighten with 7/16" wrench (These brackets are designed for a Putco 10050 or 10055 Light Bar)

5. See Light Bar Installation Instructions for wiring installation.
