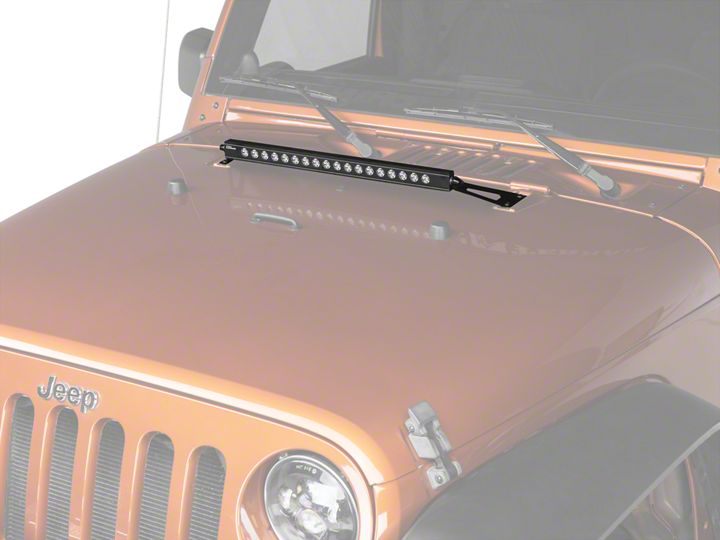

How to Install Putco 20 in. Luminix LED Light Bar w/ Hood Mounting Brackets (07-17 Wrangler JK) on your Jeep Wrangler
Shop Parts in this Guide
Please read all instructions before installation and to verify that all parts are included.
Kit For Putco 10020 Light Bar Only
Bracket Installation
1. Remove bracket kit from packaging. Check to see if all parts from above kit contents table are included.
2. Remove Bolts shown if Figure 1. Use T40 Torx Bit to remove.
3. Install brackets using supplied hardware. Tighten Down Using 5mm Hex Bit. Passenger side orientation is shown in Figure 2.
4. Mount 20" light bar between brackets. (These brackets are designed for Putco 10020 Light Bar, Refer to Putco Light Bar Installation Instructions for mounting and wiring light bar.)
