FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Audio & Electronics for your Tacoma

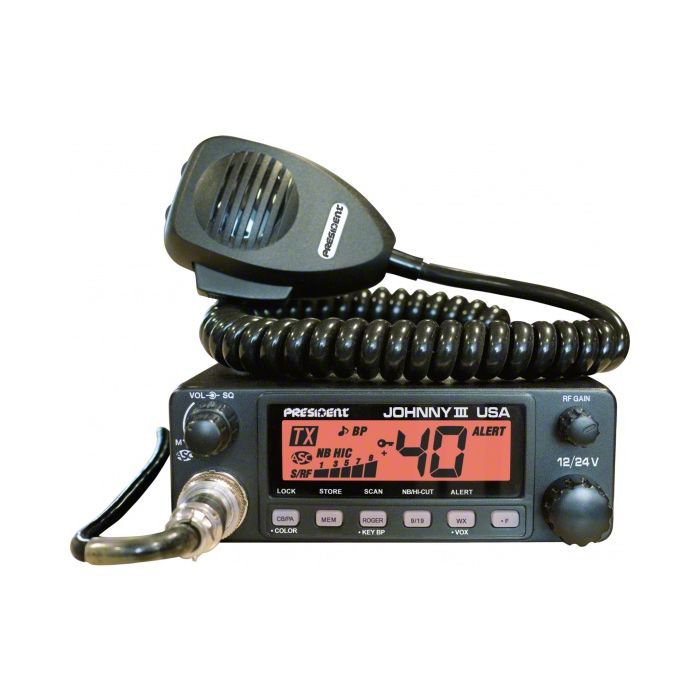

President Electronics 40-Channel Mobile AM CB Radio with Weather and PA (Universal; Some Adaptation May Be Required)
Item TT47335
Our Price
$119.00 each
Military, Medical & First Responders
$5.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Size 4.92" (W) X 5.91" (D) X 1.77" (H) _x000D_
- Power Supply 12 V / 24 V _x000D_
- AM Memory 1 _x000D_
- Channel Scan Filter ANL Built-In _x000D_
- Filter HI-CUT Weather/Alert _x000D_
- Antenna Socket SO-239 _x000D_
- Antenna Impedance 50 Ohms _x000D_
- Frequency Range From 26.965 MHz To 27.405 MHz _x000D_
- Power Supply (Input Voltage) 13.8 V / 27.6 V _x000D_
- Microphone Plug Front (6 Pins) _x000D_
- Compatible Microphone Type Electret _x000D_
- Display LCD Multifunction _x000D_
- S-Meter Digital _x000D_
- Modulation Mode AM _x000D_
- Squelch Manual Squelch _x000D_
- Channel Selector Rotary _x000D_
- Memory 1 _x000D_
- Channel Shortcuts Channel 9 & 19 _x000D_
- Weather Channels From 162.400 MHz To 162.550 MHz _x000D_
- Frequency Allowance ± 200 Hz _x000D_
- Carrier Power 4W AM _x000D_
- Transmission Interference Less Than -60 dBc _x000D_
- Audio Response 300 Hz To 3 kHz _x000D_
- Emitted Power In The Adjacent Channel Less Than 20 µW _x000D_
- Microphone Sensitivity 3 mV _x000D_
- Drain Less Than 2 Amp _x000D_
- Modulated Signal Distortion 1.8% _x000D_
- Max Sensitivity At 10 dB (S+N)/N 0.6 µV - 111 dBm _x000D_
- Frequency Response 300 Hz To 3 kHz _x000D_
- Adjacent Channel Selectivity Greater Than 60 dB _x000D_
- Maximum Audio Power 2 W _x000D_
- Squelch Sensitivity Min 0.2 µV - 120 dBm / Max 1 mV - 47 dBm _x000D_
- Frequency Image Rejection Rate 60 dB _x000D_
- Intermediate Frequency Rejection Rate 70 dB _x000D_
- Drain 300 mA Nominal / 850 mA Maximum _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Compact Mobile CB Radio. The President Electronics 40-Channel Mobile AM CB Radio with Weather and PA is designed for efficient communication during off-road excursions and everyday mobile use. It offers AM-only operation with weather alerts and public address capabilities to keep users informed and connected. This reliable device enhances communication range and clarity, vital for safety and coordination on the road.
_x000D_Construction and Appearance. This radio features a compact design with dimensions of 4.92 inches wide, 5.91 inches deep, and 1.77 inches high, making it suitable for tight spaces. The casing is robust and finished with a multifunction LCD display for clear channel and signal information. The overall build emphasizes durability and user-friendly controls, including a rotary channel selector and digital S-meter.
_x000D_Installation. Installation is straightforward with a front 6-pin electret microphone plug and SO-239 antenna socket supporting 50-ohm antennas. Mounting requires minimal effort, with no extensive drilling necessary in most vehicle configurations, facilitating swift setup.
_x000D_Warranty. The radio is covered by a 2-year warranty, extendable to 5 years when purchased with an external antenna under the 2+3 program.
_x000D_Application. Fits universal applications; some adaptation may be required depending on vehicle layout and installation preferences.
President Electronics Johnny III
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) CB Radio
