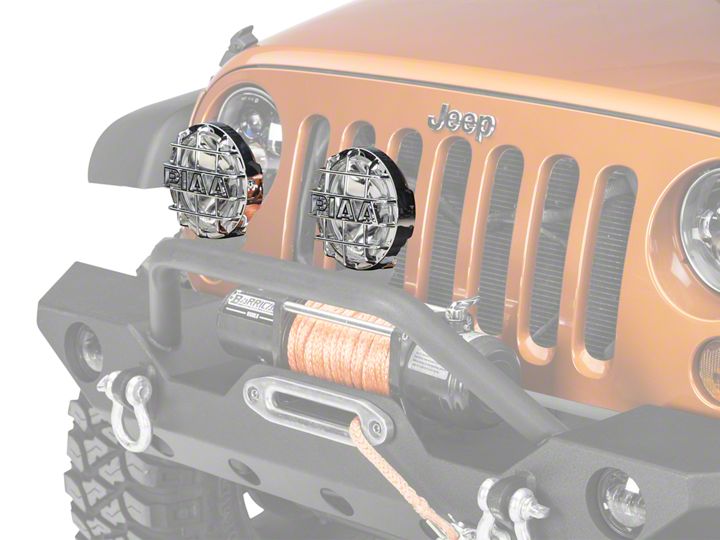

How to Install PIAA 520 Series 6 in. Round Chrome SMR Halogen Lights - Driving Beam - Pair

Tools Required
  • Vinyl electrical tape
  • Diagonal cutters
  • Phillips driver (medium)
  • 17mm Wrench
  • Pliers
Extreme Terrain
Shop Parts in this Guide

LAMP INSTALLATION

• The work site must be clean and level with enough working space to complete the job without distractions.

• When mounting the lamps mount them in such a place that they are free of obstructions. Do not mount the lamps in such a place that they will obstruct an existing automotive function. Do not mount them in such a manner that they have a chance of contacting the road or curbs.

• The PIAA 520 may be mounted upright or hanging down. It is very important to make sure the "PIAA" that is molded into the lens reads right side up. If it will not read right side up in its mounting location then the lens and reflector unit will have to be removed and repositioned in the lamp so that "PIAA" will read right side up. (See Lamp Service Section)


• When a mounting location is decided upon mount the lamp with the supplied mounting hardware.

• When lamp is mounted make sure to leave 1/8" clearance around the lamp for proper heat dissipation and to protect painted surfaces from heat damage.

HARNESS INSTALLATION

When connecting the wires on the harness, follow the wiring diagram and the sequence below.

  1. Before connecting any wires disconnect the negative (-) battery terminal. Note: When running the wires through the engine compartment sure to keep them securely away from moving parts such as the fan and the throttle cable and away from hot parts such as the exhaust manifold.
  2. Find a power source to connect the switch power wire to. For legal operation of fog lights the power source must be one that is only powered ( ) when the low beam of the headlamps is on. For legal operation of driving lights, the power source must be one that is only powered when the high beam of the headlamps is on. To make this connection use the supplied connector or any connector that is suitable for this application. Do not connect lights to turn signals or to lights that flash with an automotive alarm.
  3. Run switch wires into driver's compartment. If wires pass through the fire wall a rubber grommet must be used. Connect switch to switch wires and mount switch in desired location.
  4. Connect relay ground to chassey or battery negative (-).
  5. For proper lamp operation it is recommended that you connect the positive ( ) and negative (-) power supply wires directly to the corresponding battery terminals. Do not take power directly from the alternator.
  6. Connect harness to lamps.
  7. When the wiring is complete, test the system for operation. Do this by turning on the system. If the system works, securely fasten the relay boxes and fuse holders or tie them out of the way with wire ties. If the system does not come on, please contact your PIAA dealer for assistance.
  8. Aim lamps according to Light Aiming instructions on page 5. Tighten all fasteners.
