How to Install Omix-ADA Fender Flares (07-18 Wrangler JK) on your Jeep Wrangler

Installation Time

60 minutes

Tools Required
  • Box Cutter/Knife
  • 10mm Socket
  • Socket Wrench
  • Fender Flare Hardware Kit (not included)
Extreme Terrain
Shop Parts in this Guide

1. Begin by removing the current fender flare from the vehicle using a 10mm socket wrench (Figure A).


Figure A

2. Once all bolts have been removed, pull the current fender flare away from the vehicle (Figure B).


Figure B

3. Remove the Omix-ADA fender flare from the box and set them upside down on a soft surface. Locate the notched openings (Figure C).


Figure C

4. Using pop-ins from a fender flare hardware kit (not included), slide pop-ins over the openings along the inside of the fender flares (Figure D).


Figure D

5. Once the pop-ins are slid into place, press down to secure each clip flat with the inside of the fender flare (Figure E).


Figure E

6. Line up the pop-ins with the fender flare holes on the vehicle and press them in (Figure F).


Figure F

7. Take the factory turn signal and move it into the hole of the fender flare (Figure G).


Figure G

Before

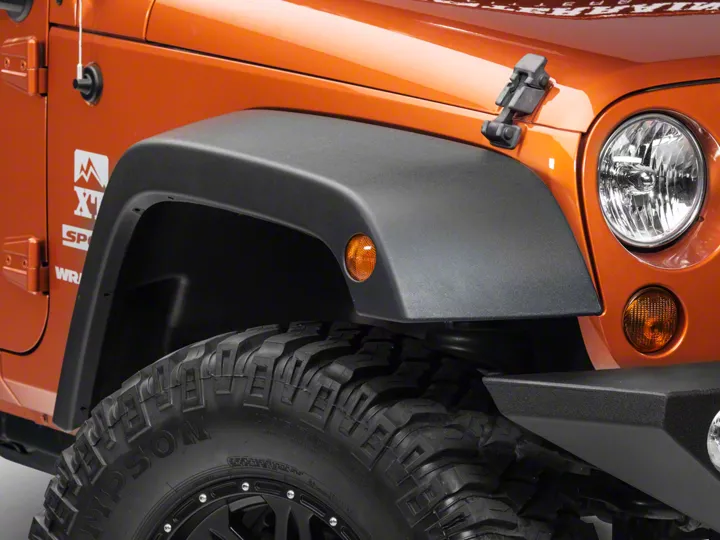

After

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 06/28/2018
