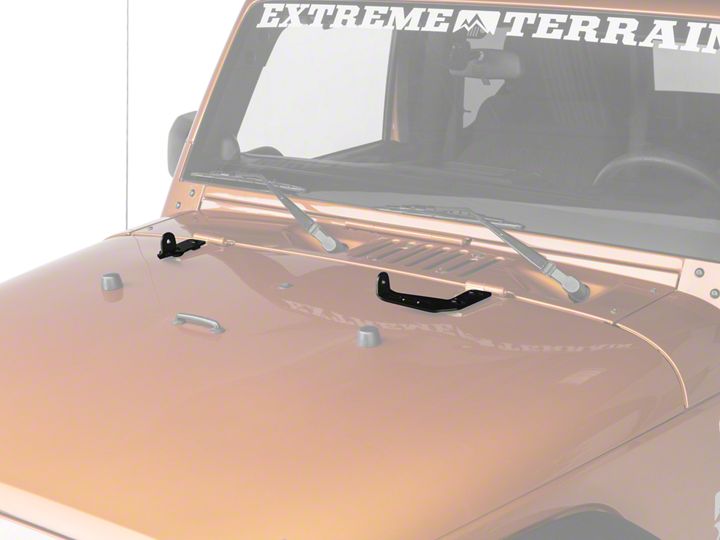

How to Install Off Camber Fabrications by MBRP Hood Light Kit, Black Coated on your Jeep Wrangler

PLEASE READ BEFORE STARTING INSTALLATION

While MBRP Inc. has mode every effort to ensure that all components of this kit ore of superior quolity cind properly packaged. it is the installer's responsibility to ensure the. following before starling:

• that ALL cornponent$ shown above are present.
• that ALL mating components fil together.
▪ that there are no damaged components.
• that the kit you have purchased is appropriate for your year and model of vehicle_
• that the kfil will not interfere with any modifications previously installed or planned.
• that you have read and understand these instructions

If you have any questions or are uncertain about any aspect of the installation of this kit on your vehicle please contact your dealer before commencing installation,

Installation of OCF Hood Light Kit

1. Remove both Passenger side hood hinge bolts using a T40 torx bit. Refer to Figure 1.

2. Place a Spacer over each of the mounting holes on the hinge, then place the Passenger Side Bracket on top of the Spacers and secure using the supplied Washers, and M8x40 Bolts. Tighten the bolts just enough to allow for adjustment. Refer to Figure 2.

3. Repeat steps 1 and 2 to install the Driver Side Bracket.

4. With both brackets loosely installed, Install your light bar in the brackets and loosely secure with the supplied fasteners from the light bar. Refer to Figure 3.

5. With all the fasteners loose, center and adjust the position of the light bar and brackets. Once the position has been set, first tighten the four M8x40 Bolts followed by the light bar fasteners. Refer to Figure 4 and 5.

6. Verify Hood alignment has not changed and hood latches still function properly. Readjust hood hinge position if necessary.

7. Wiring can be routed down the Driver Side Bracket and behind the hinge for easy access to the under hood fuse panel. Refer to Figure 6.

Congratulations! You’re finished! We are sure that you will enjoy this Off Cambe/ Fab/ications product by  AVRP Inc.
