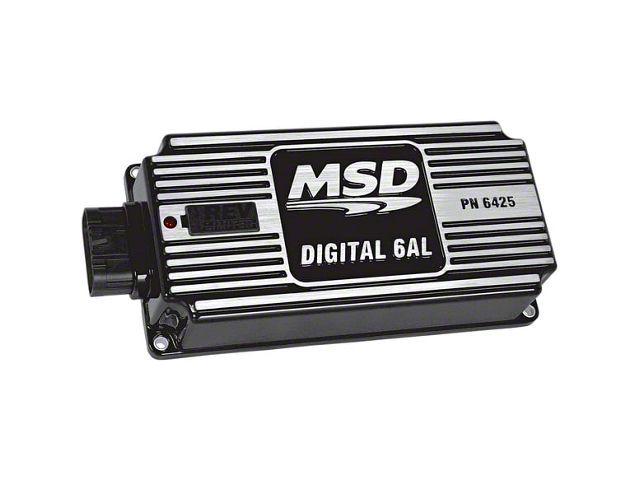

MSD Digital 6AL Ignition Control; Black (Universal; Some Adaptation May Be Required)

Item J187867
Product Image
Sale
80 Reviews of MSD
On Sale

-10% $314.96 each Was $349.95

Military, Medical & First Responders $15.75 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • High Output With 530 Volts And 135 mJ Of Spark Energy
      • 12-15 Volts Operating Range, 7 Volt Start
      • Efficient Components Use Less Current To Produce More Power
      • Compatible With 4, 6, Or 8-Cylinder Engines
      • 0.7 Amp Per 1,000 RPM
      • All Wires Exit Through A Locked, Sealed Connector
      • Set An RPM Limit Using Two Rotary Dials In 100 RPM Increments
      • Built-In LED For System Diagnostics
      • Rev Limiter Included
      • Surface Mount Type With Included Mounting Hardware And Vibration Mounts
      • Maximum RPM Of 11,000
      • Primary Voltage Range Of 520-540 Volts
      • Secondary Voltage Of 45,000 Volts
      • Spark Energy Ranges From 135-145 mJ Per Spark
      • Terminal Gender Male With 12 Terminals
      • Weight Approximately 1.7 Pounds; Dimensions: 8 Inches Length, 4 Inches Width, 1.825 Inches Height
      • Fits Universal Applications; Some Adaptation May Be Required

      Description

      Advanced Ignition Performance. The MSD Digital 6AL Ignition Control - Black is a high-performance ignition module designed to enhance spark energy and ignition efficiency for 4, 6, or 8-cylinder engines. It digitally controls firing and rev limits, providing more power with less current draw to ensure superior engine performance and reliability across various applications.

      Construction and Appearance. Built with durable materials and finished in a sleek black texture, this ignition unit features a compact surface mount design. It includes vibration mounts and a sealed, locking connector for durable, clean installation and protection against environmental factors.

      Installation. Installation is straightforward, requiring no complex drilling thanks to included mounting hardware and sealed wiring harness. The unit’s design supports neat wiring routes and easy access to rev limit settings via rotary dials located on the housing.

      Warranty. This ignition control is backed by a manufacturer’s limited one-year warranty covering defects in materials and workmanship.
      Application. Fits universal applications; some adaptation may be required.

      MSD 64253

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 20 Minutes

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Ignition Control
