Installation Time
(approx) 6 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Motobilt Wheelbase Stretch Kit; Bare Steel (76-86 Jeep CJ7)Find parts that fit my vehicle
Item J185231
Our Price
$469.00 kit
Military, Medical & First Responders
$23.45 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features

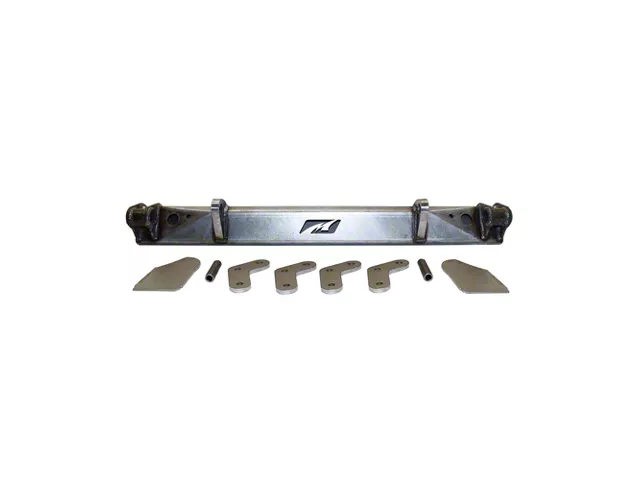

Wheelbase Modification Kit. The Motobilt Wheelbase Stretch Kit; Bare Steel is designed to shift the rear axle of your Jeep CJ approximately six inches rearward by enabling the use of Jeep XJ rear leaf springs. This modification improves vehicle stability by optimizing ride height and center of gravity, making it essential for off-road performance enhancements.
Construction and Appearance. Crafted from 3/16 inch laser cut steel plate, the kit features a durable rear bumper integrated with high-mounted shackle hangers and sturdy 3/4 inch thick d-ring recovery mounts welded on both sides. The shackles are precision-cut from 1/4 inch high-strength steel plate and include a third cross bolt for added support. The finish is bare steel, ready for custom treatment.
Installation. Installation requires moderate mechanical skill and involves removing the factory gas tank. The bumper welds to the back of the factory cross member with side frame plates. Some structural modifications may be necessary, including cutting and rewelding spring perches for wider axles. Hardware is not included and will require six 1/2”x5” grade 8 bolts with lock washers and nuts. No poly bushings are included in this kit.
Application. Specifically engineered to fit 1976 to 1986 Jeep CJ7 models, this kit does not fit other Jeep generations or body styles. It works well with aftermarket fuel cells or stretch fuel tank and skid options, though spring perches might need modification to accommodate wider axles. Removal of the factory fuel tank is required for proper installation.
Description
- Wheelbase Stretch Kit Using Jeep XJ Rear Leaf Springs On Rear
- Moves Rear Axle Back About 6 Inches
- Incorporates Custom Rear Bumper And Shackle Hangers In One Part
- High Positioned Shackle Hangers For Lower Ride Height And Better Center Of Gravity
- Bumper Ends Tapered For Better Clearance At Full Axle Drop
- Includes Custom Leaf Spring Shackles To Clear Bumper Movement
- Rear Bumper Features 3/4 Inch Thick D-Ring Recovery Mounts Welded On Both Sides
- Bumper Welds To Back Of Factory Cross Member With Side Frame Plates
- Shackles CNC Laser Cut From 1/4 Inch High Strength Steel Plate
- Shackles Measure 4 Inches Center To Center With Third Cross Bolt For Additional Support
- Kit Does Not Include Poly Bushings
- Requires Removing Factory Gas Tank
- Weight Approximately 35 Pounds
- Hardware Not Included; Requires Six 1/2”x5” Grade 8 Bolts With Lock Washers And Nuts
- Shackle Bushing Kit Sold Separately
- Works Well With Aftermarket Fuel Cells Or Stretch Fuel Tank And Skid
- Spring Perches Might Need Cutting And Rewelding For Wider Axles
- Fits 76-86 Jeep CJ7
Application. Specifically engineered to fit 1976 to 1986 Jeep CJ7 models, this kit does not fit other Jeep generations or body styles. It requires removal of the factory fuel tank and is ideal for those upgrading suspension and wheelbase dimensions for enhanced off-road capability.
Motobilt MB1519
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- Frame Extension Components
- Mounting Brackets
- Reinforcement Plates
- Hardware
