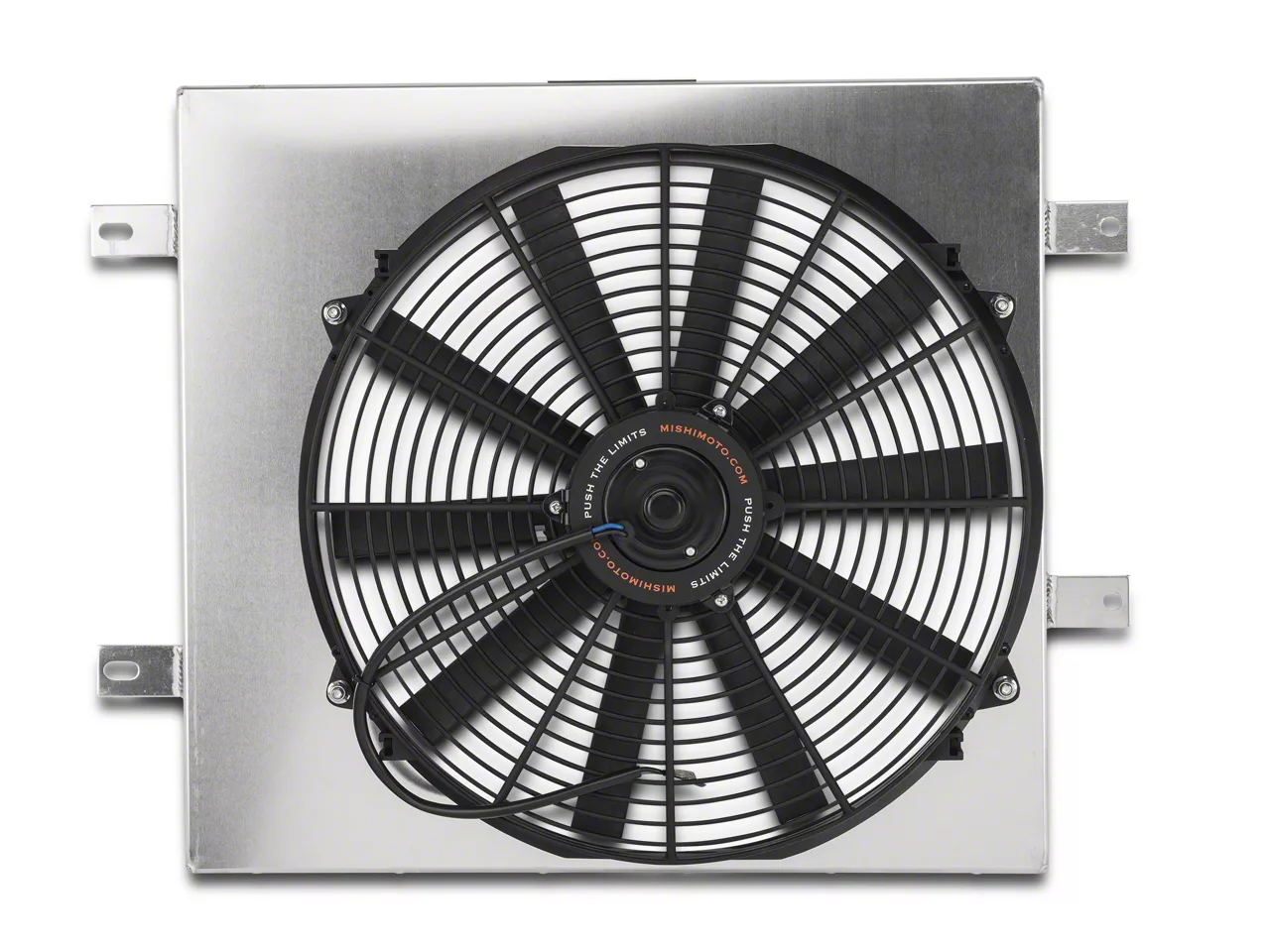

Mishimoto Performance Fan Shroud Kit (87-06 2.5L or 4.0L Jeep Wrangler YJ & TJ)

Item J103954
Call a Wrangler Enthusiast at 1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Market Price $297.99 You Save 7% ($22.04)
Starting At


FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • 1850 CFM of Airflow
    • 16 Inch Fan with Slim Design
    • Multiple Drainage Ports
    • Direct Fit
    • Brushed Aluminum Finish
    • Optional Controller Kits
    • Lifetime Warranty
    • Fits 2.5L & 4.0L Engines
    • For 1987-2006 Jeep Wrangler YJ & TJ models

    Superior Performance. Upgrade to impressive cooling power with the Mishimoto Performance Fan Shroud Kit. Specifically designed for 2.5L or 4.0L Wranglers, this Fan Shroud Kit ensures maximum cooling with air flow over 1850 CFM. As a direct fit, no modification is necessary for installation of this electrical replacement and for those seeking complete cooling management can select from the controller options above.

    Reliable Construction. This 16 inch Performance Fan Shroud Kit features a slim design and a brushed aluminum finish made to complement your Wrangler's engine. To maximize cooling and prevent water condensation during intense off road conditions, the shroud is equipped with multiple drainage ports along the bottom.

    Installation. This electric fan shroud is a direct replacement for your Wrangler's mechanical fan and mounts to your stock radiator or Mishimoto's Performance Radiator with no modifications. Additional aluminum brackets are included to accommodate stock overflow and power steering on TJ models. This kit includes all the necessary hardware for a complete installation, no additional parts are required.

    Optional Controller. The Performance Fan Shroud Kit is available with a controller kit that includes an adjustable relay and either a Push-In Radiator Probe or 1/8"" NPT Temperature Sensor to suit your cooling needs. Each controller kit provides adjustable activation temperatures from 150 to 240 degrees and a built-in A/C override feature. These kits are suitable for use with 1-2 electric fans drawing a combined 25 amps or less and include 7 ft. of wiring, connectors and hardware for installation. Please select from the drop down options above.

    Warranty. Mishimoto maintains high standards in quality. To ensure craftsmanship they back this kit, as well as the optional controller kits with a lifetime limited warranty. Please see manufacturer's warranty for complete details.

    Application. The Mishimoto Performance Fan Shroud Kit is designed for use on 1987-2006 Jeep Wrangler YJ and TJ models with either a 2.5L or 4.0L. This performance kit can be purchased alone, with a Push-In Radiator Probe Controller Kit or 1/8"" NPT Temperature Sensor Controller Kit; Please select from the drop down options above.

    Fitment: 1987 1988 1989 1990 1991 1992 1993 1994 1995 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 Details

    CA Residents: WARNING: Cancer and Reproductive Harm -

    What's in the Box
    • (1) 16"" Slim Electric Fan
    • (1) Overflow Reservoir Bracket
    • (1) Power Steering Reservoir Bracket
    • Hardware

    Optional Controller Kit:
    • Fan Controller
    • Probe or 1/8"" NPT Sensor
    • Wiring Harness & Connectors
    • Mounting Hardware
    Installation Info
    Tech Specs
    Will it fit my Wrangler?
    • TJ Rubicon 2 Door - 03, 04, 05, 06
    • TJ Rubicon Unlimited 2 Door - 05, 06
    • TJ Wrangler 2 Door - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06
    • TJ Wrangler Unlimited 2 Door - 04, 05, 06
    • YJ Wrangler 2 Door - 87, 88, 89, 90, 91, 92, 93, 94, 95

      Customer Photos (5) Submit Your Photo

      View All 5 Photos

        Questions & Answers (5)

        5 Top Rated Questions

        I am trying to find out if the "Performance fan kit with 1/8 in NPT controller kit" comes with a T connector so I can use my stock water temperature sensor at the same time as the sensor for the fan kit?

        • lt does not include a connector that allows for that setup.

        Helpful (0)

        What is the "probe" option for the temp sensor? How does it install are there any benefits better from one option to the other? I just don't understand where the "probe" would go. Thanks.

        • The probe option would be inserted into the radiator fins making for an easier installation, however the temperature sender would be the more accurate and reliable method of getting a temperature reading.

        Helpful (0)

        Does this kit come with a "T" adapter for the NPT sensor, so we can have both the factory sensor and the NPT on at the same time?

        Does this kit come with the radiator hose adaptor for the 1/8 in npt fitting or do i need to but that seperate

        • The 1/8 in npt fitting is included in the option on the site that lists "Performance Kit with 1/8 In NPT controller kit". It would not be in the standardMishimoto Performance Fan Shroud Kit listed as "Performance Fan Kit".

        Helpful (0)

        It shows controller is available but where.or is it included like the pictures show ?

        • The Mishimoto Performance Fan Shroud Kit is offered in three options and 2 include a controller kit- a Push-In Radiator Probe Controller Kit or 1/8"" NPT Temperature Sensor Controller Kit. Please select which you would like from the drop down options above.

        Helpful (0)
        Post Your Question

          Customer Reviews (5) Write a Review

          Overall Rating 4.2

          out of 5 stars

          Installation Time:Afternoon

          Installation Cost:0-$100

          • Performance Gain 4.8 4.8
          • Fit 5 5
          • Bang For Your Buck 4.6 4.6

          • 1/5

            Installation Time: Shop Install

            Installation Cost: 0-$100

            March 15, 2019

            Not worth it

            I bought one of these along with the new radiator they offer. It hardly moved any air and was much more louder than I would expect. I also had really bad luck with the radiator, can’t say I’m impressed with Mishimoto. I own a 02 Jeep Wrangler


            Year: 2018Submodel: Rubicon

            Helpful (2)

          • 5/5

            Installation Time: Afternoon

            February 27, 2019

            It is worth it

            Love this addition to my jeep, opted for the 1/8 inch npt controller kit it did not come with the hose adapter to screw the sensor into so i bought it seperate. It needs to be 32mm. Highly recomend this set up, also wired it to a switch inside dash. I took my time with install to lume everything.


            Year: 2002Submodel: Wrangler

            Helpful (2)

          • 5/5

            Installation Time: Less than 1 Hour

            August 09, 2018

            This fan really sucks.....

   a ton of air thru the radiator and fits perfectly and even leaves some room between the fan and threads from the old mechanical fan mount.


            Year: 2002Submodel: Wrangler

            Helpful (13)

          • 5/5

            Installation Time: Afternoon

            August 07, 2018


            Comes with everything I needed. Drastically improved my temperature. Looks great too


            Year: 2000Submodel: Wrangler

            Helpful (13)

          • 5/5

            Installation Time: Less than 1 Hour

            July 21, 2016

            Well worth it!

            This part was very easy to install, just four screws right into the radiator. No modification of any kind was needed in order for this part to fit, so I give it a 5 star in that category. After the install and testing it a bit, it kept my jeep about 10-15 degrees cooler and I noticed an immediate difference in suction between the stock fan and this electric fan. Very impressed by mishimoto, they got my business.


            Year: 1998Submodel: Wrangler

            Helpful (20)
