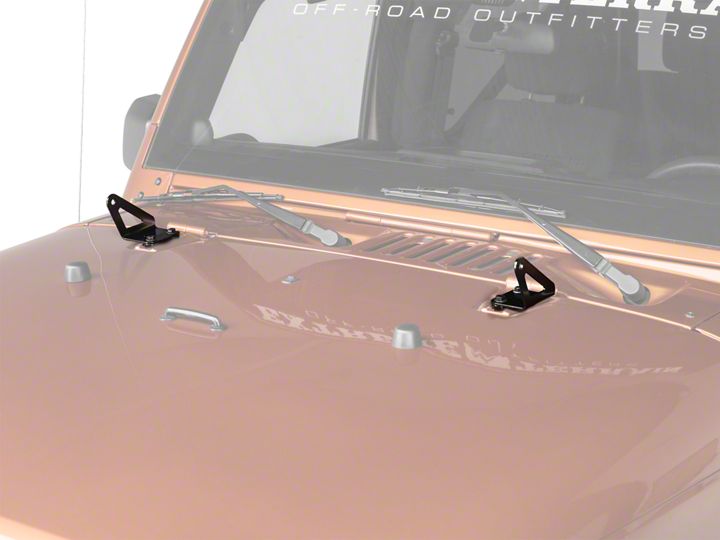

How to Install KC HiLiTES 30 in. C-Series C30 LED Light Bar Hood Mounting Brackets (07-18 Jeep Wrangler JK) on your Jeep Wrangler

Installation Time

30 minutes

Tools Required
  • T50 Torx Bit
  • 1/2” Socket
  • Socket Wrench
  • WD-40
Extreme Terrain
Shop Parts in this Guide

Installation Instructions:


1. Remove the screws holding the hood and the hood hinge together using the T50 Torx Bit. This may require you spraying WD-40 on the bolts because they are very tight.


2. Once they are removed, place the included spacers on top of the screw hole.


3. Align the holes on the KC HiLiTES mounting bracket with the spacers and place the washer and nut as shown. NOTE: This is the correct setup for the passenger side mounting bracket.


4. Tighten the nuts with a 1/2” socket until it is tight, but do not overtighten.


5. Repeat steps 1-4 for the mounting bracket that you did not already attach.


6. You have now attached the KC HiLiTES 30 in. C-Series C30 LED Light Bar Hood Mounting Brackets to your Jeep.


7. You can now insert the KC HiLiTES 30 in. C-Series C30 LED Light Bar to the Hood Mounting Brackets using the screws included with the light bar.


Installation Instructions Written by ExtremeTerrain Customer Thomas Sandoval 05/26/2017
