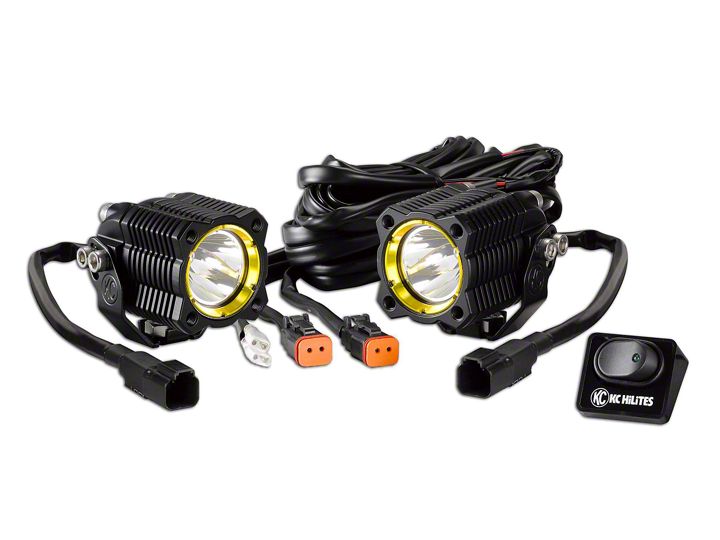

How to Install KC HiLiTES Flex Single LED Light - 10W Spot Beam - Pair on your Jeep Wrangler

Installation Time

60 minutes

Tools Required
  • Box Cutter/Knife
  • 17mm Socket
  • Socket Wrench
Extreme Terrain
Shop Parts in this Guide

1. Locate the wiring harness (Figure A).


Figure A

2. Run the black (negative) wire to the negative (-) battery terminal (Figure B).


Figure B

3. Run the red (positive) wire to the positive ( ) battery terminal (Figure C).


Figure C

4. Run the wiring harness to the mounting location for the switch and run the yellow wire to the top terminal (Figure D).


Figure D

5. Run the red wire from the wiring harness to the middle terminal of the switch (Figure E).


Figure E

6. Run the black wire from the wiring harness to the bottom terminal of the switch (Figure F).


Figure F

7. Using a 17mm socket wrench, remove the nut from the bolt (Figure G).


Figure G

8. Place the bolt through the mounting location and tighten the nut back on (Figure H).


Figure H

9. Run the wiring harness to the LED connectors (Figure I).


Figure I

10. Connect the wiring harness to the LED connectors (Figure J).


Figure J

11. Repeat Steps 7-10 for the other light.


Before

After

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 08/14/2018
